Individual & Overall Screened & Armored Thermocouple Cable with Lead Cover

Applications

These cables are suitable for underground use in industries, in moist areas, where require chemical and mechanical protections. The lead sheath brings an enhanced resistance to aliphatic and aromatic and aromatic hydrocarbon.

Standards

IEC 60584-3; NF C 42-324

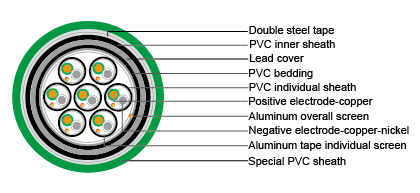

Construction

  • Conductor: Metal according to thermocouple type
  • Insulation: PVC
  • Individual screen: Aluminum/polyester tape with tinned copper drain wire
  • Individual sheath: PVC
  • Overall screen: Aluminum/polyester tape with tinned copper drain wire
  • Inner sheath: PVC
  • Lead cover
  • Armour: Double steel tape
  • Sheath: Special PVC. Color depends on thermocouple type

Properties

  • Flame retardance: NFC 32070 C2, IEC 60332-1-2
  • Operating voltage: 250V
  • Operating temperature: -20~60°C
  • Max. conductor temperature in service: 70°C
  • Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
Conductor Size (mm sq) No, of Pairs Diameter over Lead Sheath (mm) Min. O.D. (mm) Max. O.D. (mm) Approx. Weight (kg/km)
0.5 solid 3 14.1 17.1 19.6 950
0.5 solid 7 18.8 21.8 25.0 1450
0.5 solid 12 23.7 26.6 30.5 1960
0.5 solid 19 28.8 31.6 36.3 2660
0.5 solid 27 33.7 36.3 41.6 3390
