Individual & Overall Screened & Armored Thermocouple Cable

Applications

These cables are used with thermocouples for temperature measurements where hydrocarbon may be present.

Standards

IEC 60584-3; NF C 42-324

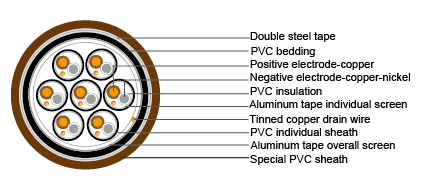

Construction

  • Conductor: Metal according to thermocouple type
  • Insulation: PVC
  • Individual screen: Aluminum/polyester tape with tinned copper drain wire
  • Individual sheath: PVC
  • Overall screen: Aluminum/polyester tape with tinned copper drain wire
  • Inner sheath: PVC
  • Armor: Double steel tape
  • Sheath: Special PVC. Color depends on thermocouple type

Properties

  • Flame retardance: NFC 32070 C2, IEC 60332-1-2
  • Operating voltage: 250V
  • Operating temperature: -20~60°C
  • Max. conductor temperature in service: 70°C
  • Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
Conductor Size (mm sq) No, of Pairs Min. O.D. (mm) Max. O.D. (mm) Approx. Weight (kg/km)
0.5 solid 3 14.6 16.8 370
0.5 solid 7 19.1 22.0 590
0.5 solid 12 23.9 27.5 865
0.5 solid 19 28.8 33.0 1225
0.5 solid 27 33.2 38.2 1700
