Medium Voltage XLPE Insulated Galvanized Steel Tape Armored Cable to IEC 60502-2

Applications

These cables are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations, where require chemical and mechanical protection.

Standards

IEC 60228; IEC 60502-2

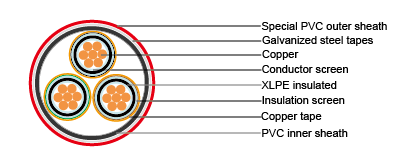

Construction

• Conductor: Stranded bare copper (class 2)
• Conductor screen: This will be an extruded layer of semi-conducting crosslinkable compound applied under simultaneous triple extrusion process over the conductor along with the insulation and the
• insulation screen.
• Insulation: XLPE
• Insulation screen: This will be a layer of semi-conducting crosslinkable compound which will be applied by triple extrusion process over the insulation.
• Core identification:
• 1 Core: Natural
• 3 Cores: Black, Green, Brown
• Inner sheath: PVC
• Armor: Galvanized steel tapes or aluminum tapes for 1 core cable
• Outer sheath: Special PVC. Color: red. U.V. resistance can be offered upon request.

Properties

• Fire retardance: IEC 60332-3-22
• Operating temperature: -20~60°C
• Max. conductor operating temperature: 90°C
• Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
