 Overall Screened & Armored Thermocouple Cable
Applications
These cables are used with thermocouples for temperature measurements where hydrocarbon may be
present.
Standards
IEC 60584-3; NF C 42-324

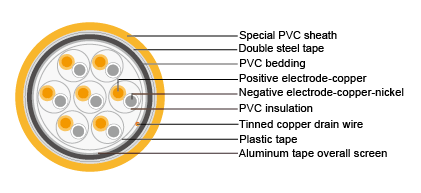

Construction
Conductor: Metal according to thermocouple type
Insulation: PVC
Overall screen: Aluminum/polyester tape with tinned copper drain wire
Inner sheath: PVC
Armour: Double steel tape
Sheath: Special PVC. Color depends on thermocouple type
Properties
Flame retardance: NFC 32070 C2, IEC 60332-1-2
Operating voltage: 250V
Operating temperature: -20~60°C
Max. conductor temperature in service: 70°C
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
Conductor Size |
No, of Pairs |
Min. O.D. (mm) |
Max. O.D. (mm) |
Approx. Weight (kg/km) |
mm sq |
Solid or Stranding |
1 |
14 x 0.30 mm |
1 |
9.8 |
11.3 |
180 |
1.34 |
1 x 1.30 mm |
1 |
9.8 |
11.3 |
185 |
0.5 |
1 x 0.8 mm |
3 |
11.4 |
13.1 |
225 |
0.5 |
1 x 0.8 mm |
7 |
14.1 |
16.2 |
330 |
0.5 |
1 x 0.8 mm |
12 |
17.3 |
19.8 |
470 |
0.5 |
1 x 0.8 mm |
19 |
20.6 |
23.7 |
650 |
0.5 |
1 x 0.8 mm |
27 |
23.2 |
26.6 |
830 |
|
