 Screened TFN Cable
Applications
These cables are use in class 1, Division 2 Hazardous locations, may be installed in trays, wire ways,
ducts, conduit and aerially when properly supported by a messenger. They are approved for direct
burial, wet or dry locations and outdoors in cable trays where a sunlight resistant rating is required.
Standards
ICEA S-73-532; UL 1277; UL 66

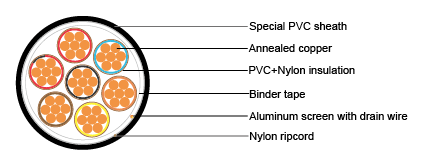

Construction
Conductor: Bare, annealed copper conforming to ASTM B3 and B8
Insulation: Flame-retardant PVC/Nylon type TFN per UL 66
Color coded per Method #1-E2 per ICEA S-73-532
Binder tape
Screen: Aluminum tape
Drain Wire: 18 AWG (7w) tinned copper for 16 AWG conductor
20 AWG (7w) tinned copper for 18 AWG conductor
Ripcord: Nylon
Jacket: Special PVC, flame retardant, UL listed sunlight and moisture resistant, meeting the
requirements of UL 1277. Color: Black
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
16 AWG, 600V, Rated 90°C
No. of Cores |
PVC Thickness |
Nylon Thickness |
Jacket Thickness |
Nom. O.D. |
Approx. Weight |
Ampacity |
mm |
mm |
mm |
mm |
kg/km |
amps |
2 |
0.38 |
0.10 |
1.14 |
7.57 |
76 |
8.0 |
3 |
0.38 |
0.10 |
1.14 |
7.98 |
100 |
8.0 |
4 |
0.38 |
0.10 |
1.14 |
8.61 |
119 |
6.4 |
5 |
0.38 |
0.10 |
1.14 |
9.35 |
143 |
6.4 |
6 |
0.38 |
0.10 |
1.14 |
10.11 |
165 |
6.4 |
7 |
0.38 |
0.10 |
1.14 |
10.11 |
179 |
5.6 |
8 |
0.38 |
0.10 |
1.14 |
11.05 |
202 |
5.6 |
9 |
0.38 |
0.10 |
1.14 |
11.86 |
222 |
5.6 |
10 |
0.38 |
0.10 |
1.14 |
12.62 |
240 |
4.0 |
11 |
0.38 |
0.10 |
1.14 |
12.80 |
257 |
4.0 |
12 |
0.38 |
0.10 |
1.52 |
13.94 |
278 |
4.0 |
13 |
0.38 |
0.10 |
1.52 |
14.17 |
317 |
4.0 |
14 |
0.38 |
0.10 |
1.52 |
14.61 |
341 |
4.0 |
15 |
0.38 |
0.10 |
1.52 |
14.96 |
360 |
4.0 |
19 |
0.38 |
0.10 |
1.52 |
16.10 |
448 |
4.0 |
20 |
0.38 |
0.10 |
1.52 |
16.56 |
461 |
4.0 |
25 |
0.38 |
0.10 |
1.52 |
18.47 |
561 |
3.6 |
30 |
0.38 |
0.10 |
1.52 |
19.69 |
655 |
3.6 |
37 |
0.38 |
0.10 |
2.03 |
22.20 |
845 |
3.2 |
40 |
0.38 |
0.10 |
2.03 |
22.99 |
899 |
3.2 |
45 |
0.38 |
0.10 |
2.03 |
24.26 |
995 |
2.8 |
50 |
0.38 |
0.10 |
2.03 |
25.12 |
1106 |
2.8 |
18 AWG, 600V, Rated 90°C
No. of Cores |
PVC Thickness |
Nylon Thickness |
Jacket Thickness |
Nom. O.D. |
Approx. Weight |
Ampacity |
mm |
mm |
mm |
mm |
kg/km |
amps |
2 |
0.38 |
0.10 |
1.14 |
7.11 |
57 |
6.0 |
3 |
0.38 |
0.10 |
1.14 |
7.47 |
73 |
6.0 |
4 |
0.38 |
0.10 |
1.14 |
8.06 |
86 |
4.8 |
5 |
0.38 |
0.10 |
1.14 |
8.71 |
108 |
4.8 |
6 |
0.38 |
0.10 |
1.14 |
9.40 |
122 |
4.8 |
7 |
0.38 |
0.10 |
1.14 |
9.40 |
136 |
4.2 |
8 |
0.38 |
0.10 |
1.14 |
10.26 |
145 |
4.2 |
9 |
0.38 |
0.10 |
1.14 |
10.99 |
167 |
4.2 |
10 |
0.38 |
0.10 |
1.14 |
11.68 |
188 |
3.0 |
11 |
0.38 |
0.10 |
1.14 |
11.84 |
193 |
3.0 |
12 |
0.38 |
0.10 |
1.14 |
12.18 |
202 |
3.0 |
13 |
0.38 |
0.10 |
1.14 |
12.39 |
214 |
3.0 |
14 |
0.38 |
0.10 |
1.14 |
12.77 |
228 |
3.0 |
15 |
0.38 |
0.10 |
1.14 |
13.09 |
245 |
3.0 |
19 |
0.38 |
0.10 |
1.52 |
14.88 |
320 |
3.0 |
20 |
0.38 |
0.10 |
1.52 |
15.30 |
326 |
3.0 |
25 |
0.38 |
0.10 |
1.52 |
17.01 |
416 |
2.7 |
30 |
0.38 |
0.10 |
1.52 |
18.11 |
473 |
2.7 |
37 |
0.38 |
0.10 |
1.52 |
19.46 |
580 |
2.4 |
40 |
0.38 |
0.10 |
1.52 |
20.17 |
606 |
2.4 |
45 |
0.38 |
0.10 |
2.03 |
22.32 |
673 |
2.1 |
50 |
0.38 |
0.10 |
2.03 |
23.10 |
783 |
2.1 |
|
