 Screened THHN/THWN-2 Cable
Applications
These cables are use in class 1, Division 2 Hazardous locations, may be installed in trays, wire ways,
ducts, conduit and aerially when properly supported by a messenger. They are approved for direct
burial, wet or dry locations and outdoors in cable trays where a sunlight resistant rating is required.
Standards
ICEA S-73-532; UL 1277; UL 83

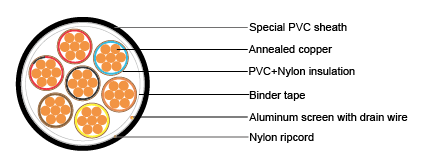

Construction
Conductor: Bare, annealed copper conforming to ASTM B3 and B8
Insulation: Flame-retardant PVC/Nylon type THHN/THWN-2 per UL 83
Color coded per Method #1-E2 per ICEA S-73-532
Binder tape
Screen: Aluminum tape
Drain Wire: 16 AWG (7w) tinned copper
Ripcord: Nylon
Jacket: Special PVC, flame retardant, UL listed sunlight and moisture resistant, meeting the
requirements of UL 1277. Color: Black
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
10 AWG, 600V, Rated 90°C
No. of Cores |
PVC Thickness |
Nylon Thickness |
Jacket Thickness |
Nom. O.D. |
Approx. Weight |
Ampacity |
mm |
mm |
mm |
mm |
kg/km |
amps |
2 |
0.51 |
0.10 |
1.14 |
10.87 |
189 |
40 |
3 |
0.51 |
0.10 |
1.14 |
11.52 |
251 |
40 |
4 |
0.51 |
0.10 |
1.14 |
12.61 |
290 |
32/40 |
5 |
0.51 |
0.10 |
1.52 |
14.57 |
414 |
32 |
6 |
0.51 |
0.10 |
1.52 |
15.82 |
479 |
32 |
7 |
0.51 |
0.10 |
1.52 |
15.82 |
540 |
28 |
8 |
0.51 |
0.10 |
1.52 |
17.35 |
609 |
28 |
9 |
0.51 |
0.10 |
1.52 |
18.69 |
679 |
28 |
10 |
0.51 |
0.10 |
1.52 |
19.95 |
748 |
20 |
11 |
0.51 |
0.10 |
1.52 |
20.24 |
811 |
20 |
12 |
0.51 |
0.10 |
2.03 |
21.89 |
930 |
20 |
13 |
0.51 |
0.10 |
2.03 |
22.27 |
984 |
20 |
14 |
0.51 |
0.10 |
2.03 |
22.98 |
1116 |
20 |
15 |
0.51 |
0.10 |
2.03 |
23.56 |
1173 |
20 |
16 |
0.51 |
0.10 |
2.03 |
24.19 |
1262 |
20 |
19 |
0.51 |
0.10 |
2.03 |
25.45 |
1376 |
20 |
20 |
0.51 |
0.10 |
2.03 |
26.21 |
1443 |
20 |
25 |
0.51 |
0.10 |
2.03 |
29.35 |
1771 |
18 |
30 |
0.51 |
0.10 |
2.03 |
31.36 |
2098 |
18 |
37 |
0.51 |
0.10 |
2.03 |
33.83 |
2544 |
16 |
40 |
0.51 |
0.10 |
2.03 |
35.13 |
2738 |
16 |
45 |
0.51 |
0.10 |
2.03 |
37.23 |
3056 |
14 |
50 |
0.51 |
0.10 |
2.03 |
38.65 |
3378 |
14 |
12 AWG, 600V, Rated 90°C
No. of Cores |
PVC Thickness |
Nylon Thickness |
Jacket Thickness |
Nom. O.D. |
Approx. Weight |
Ampacity |
mm |
mm |
mm |
mm |
kg/km |
amps |
2 |
0.38 |
0.10 |
1.14 |
9.35 |
132 |
30.0 |
3 |
0.38 |
0.10 |
1.14 |
9.87 |
174 |
30.0 |
4 |
0.38 |
0.10 |
1.14 |
10.74 |
219 |
24.0/30.0 |
5 |
0.38 |
0.10 |
1.14 |
11.69 |
272 |
24.0 |
6 |
0.38 |
0.10 |
1.14 |
12.70 |
310 |
24.0 |
7 |
0.38 |
0.10 |
1.14 |
12.70 |
338 |
21.0 |
8 |
0.38 |
0.10 |
1.52 |
14.53 |
394 |
21.0 |
9 |
0.38 |
0.10 |
1.52 |
15.60 |
470 |
21.0 |
10 |
0.38 |
0.10 |
1.52 |
16.61 |
513 |
15.0 |
11 |
0.38 |
0.10 |
1.52 |
16.84 |
549 |
15.0 |
12 |
0.38 |
0.10 |
1.52 |
17.34 |
595 |
15.0 |
13 |
0.38 |
0.10 |
1.52 |
17.64 |
634 |
15.0 |
14 |
0.38 |
0.10 |
1.52 |
18.21 |
677 |
15.0 |
15 |
0.38 |
0.10 |
1.52 |
18.68 |
717 |
15.0 |
16 |
0.38 |
0.10 |
1.52 |
19.19 |
747 |
15.0 |
19 |
0.38 |
0.10 |
1.52 |
20.19 |
870 |
15.0 |
20 |
0.38 |
0.10 |
1.52 |
20.80 |
933 |
15.0 |
25 |
0.38 |
0.10 |
2.03 |
24.33 |
1176 |
13.5 |
30 |
0.38 |
0.10 |
2.03 |
25.94 |
1379 |
13.5 |
37 |
0.38 |
0.10 |
2.03 |
27.91 |
1665 |
12.0 |
40 |
0.38 |
0.10 |
2.03 |
28.95 |
1827 |
12.0 |
45 |
0.38 |
0.10 |
2.03 |
30.63 |
2039 |
10.5 |
50 |
0.38 |
0.10 |
2.03 |
31.77 |
2245 |
10.5 |
14 AWG, 600V, Rated
No. of Cores |
PVC Thickness |
Nylon Thickness |
Jacket Thickness |
Nom. O.D. |
Approx. Weight |
Ampacity |
mm |
mm |
mm |
mm |
kg/km |
amps |
2 |
0.38 |
0.10 |
1.14 |
8.23 |
103 |
25.0 |
3 |
0.38 |
0.10 |
1.14 |
8.67 |
129 |
25.0 |
3 |
0.38 |
0.10 |
1.14 |
8.67 |
129 |
25.0 |
4 |
0.38 |
0.10 |
1.14 |
9.42 |
159 |
20.0/25.0 |
5 |
0.38 |
0.10 |
1.14 |
10.24 |
190 |
20.0 |
6 |
0.38 |
0.10 |
1.14 |
11.10 |
220 |
20.0 |
7 |
0.38 |
0.10 |
1.14 |
11.10 |
243 |
17.5 |
8 |
0.38 |
0.10 |
1.14 |
12.14 |
277 |
17.5 |
9 |
0.38 |
0.10 |
1.52 |
13.06 |
307 |
17.5 |
10 |
0.38 |
0.10 |
1.52 |
14.68 |
362 |
12.5 |
11 |
0.38 |
0.10 |
1.52 |
14.88 |
388 |
12.5 |
12 |
0.38 |
0.10 |
1.52 |
15.31 |
421 |
12.5 |
13 |
0.38 |
0.10 |
1.52 |
15.57 |
443 |
12.5 |
14 |
0.38 |
0.10 |
1.52 |
16.06 |
473 |
12.5 |
15 |
0.38 |
0.10 |
1.52 |
16.46 |
501 |
12.5 |
16 |
0.38 |
0.10 |
1.52 |
16.89 |
533 |
12.5 |
19 |
0.38 |
0.10 |
1.52 |
17.75 |
615 |
12.5 |
20 |
0.38 |
0.10 |
1.52 |
18.27 |
643 |
12.5 |
25 |
0.38 |
0.10 |
1.52 |
20.42 |
787 |
11.3 |
30 |
0.38 |
0.10 |
2.03 |
22.82 |
972 |
11.3 |
37 |
0.38 |
0.10 |
2.03 |
24.51 |
1174 |
10.0 |
40 |
0.38 |
0.10 |
2.03 |
25.40 |
1262 |
10.0 |
45 |
0.38 |
0.10 |
2.03 |
26.84 |
1403 |
8.8 |
50 |
0.38 |
0.10 |
2.03 |
27.81 |
1537 |
8.8 |
|
