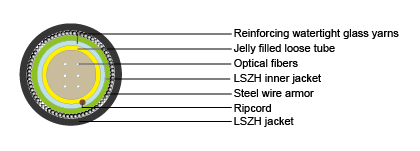

Steel Wire Armored Optical Fiber Cable with LSZH Sheath

Applications

All materials are halogen free. This ensures that non corrosive and low toxic gases are emitted in case of fire. This cable is recommended for use inside buildings where require mechanical protection.

Standards

IEC 794-1-E1; IEC 794-1-E3; IEC 794-1-E4; IEC 794-1-F1; IEC 60332-3-22 Cat.A

Properties

  • Operating temperature: -20~60°C
  • Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
No. of Optical Fiber Fiber Optic Type No. of Tube Diameter over Inner Sheath (mm) Diameter over Armor (mm) Min. O.D. (mm) Max. O.D. (mm) Approx. Weight
(kg/km)
4 50/125 1 6.6 8.4 10.8 12 232
4 62.5/125 1 6.6 8.4 10.8 12 232
6 50/125 1 6.6 8.4 10.8 12 232
6 62.5/125 1 6.6 8.4 10.8 12 232
8 50/125 1 6.6 8.4 10.8 12 232
8 62.5/125 1 6.6 8.4 10.8 12 232
8 9/125 1 6.6 8.4 10.8 12 232
12 50/125 1 6.6 8.4 10.8 12 232
12 62.5/125 1 6.6 8.4 10.8 12 232
12 9/125 1 6.6 8.4 10.8 12 232
16 62.5/125 1 6.6 8.4 10.8 12 232
24 50/125 1 6.6 8.4 10.8 12 232
24 62.5/125 1 6.6 8.4 10.8 12 232
