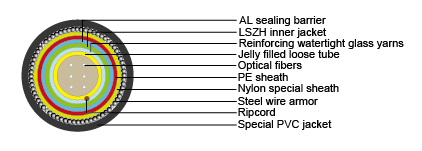

Steel Wire Armored Optical Fiber Cable with Special Sheath

Applications

These cables are suitable for underground use in all refineries while bringing an environmental friendly solution. The special design can resists aliphatic and aromatic hydrocarbon and U.V.

Standards

IEC 794-1-E1; IEC 794-1-E3; IEC 794-1-E4; IEC 794-1-F1; IEC 60332-3-22 Cat.A

Properties

  • Operating temperature: -20~60°C
  • Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
No. of Optical Fiber Fiber Optic Type No. of Tube Diameter over Inner Sheath (mm) Diameter over Sheath (mm) Diameter over Armor (mm) Min. O.D. (mm) Max. O.D. (mm) Approx. Weight
(kg/km)
4 50/125 1 6.6 10.23 12.03 14.5 16.2 397
4 62.5/125 1 6.6 10.23 12.03 14.5 16.2 397
6 50/125 1 6.6 10.23 12.03 14.5 16.2 397
6 62.5/125 1 6.6 10.23 12.03 14.5 16.2 397
8 50/125 1 6.6 10.23 12.03 14.5 16.2 397
8 62.5/125 1 6.6 10.23 12.03 14.5 16.2 397
8 9/125 1 6.6 10.23 12.03 14.5 16.2 397
12 50/125 1 6.6 10.23 12.03 14.5 16.2 397
12 62.5/125 1 6.6 10.23 12.03 14.5 16.2 397
12 9/125 1 6.6 10.23 12.03 14.5 16.2 397
16 62.5/125 1 6.6 10.23 12.03 14.5 16.2 397
24 50/125 1 6.6 10.23 12.03 14.5 16.2 397
24 62.5/125 1 6.6 10.23 12.03 14.5 16.2 397
