 Unscreened XHHW-2 Cable
Applications
These cables are use in class 1, Division 2 Hazardous locations, may be installed in trays, wire ways,
ducts, conduit and aerially when properly supported by a messenger. They are approved for direct
burial, wet or dry locations and outdoors in cable trays where a sunlight resistant rating is required.
Standards
ICEA S-73-532; UL 1277; UL 66

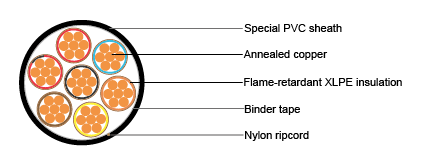

Construction
Conductor: Bare, annealed copper conforming to ASTM B3 and B8
Insulation: Flame-retardant XLPE meeting the requirements for XHHW-2 per UL 44 and the
requirements of ICEA S-95-658 for XLPE insulation as standard. Sizes 14 AWG to 10 AWG are VW-1,
Binder tape
Jacket: Special PVC, flame retardant, UL listed sunlight and moisture resistant, meeting the
requirements of UL 1277. Color: Black
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
10AWG, 600V, Rated 90°C
No. of Cores |
Insulation Thickness |
Jacket Thickness |
Nom. O.D. |
Approx. Weight |
Ampacity |
(mm) |
(mm) |
(mm) |
(kg/km) |
(amps) |
2 |
0.76 |
1.14 |
11.94 |
190 |
40.0 |
3 |
0.76 |
1.14 |
12.57 |
259 |
40.0 |
4 |
0.76 |
1.14 |
13.84 |
332 |
32/40 |
5 |
0.76 |
1.52 |
16.00 |
432 |
32.0 |
6 |
0.76 |
1.52 |
17.40 |
507 |
32.0 |
7 |
0.76 |
1.52 |
17.40 |
568 |
28.0 |
8 |
0.76 |
1.52 |
18.80 |
607 |
28.0 |
9 |
0.76 |
1.52 |
20.32 |
713 |
28.0 |
10 |
0.76 |
1.52 |
21.72 |
752 |
20.0 |
11 |
0.76 |
2.03 |
23.11 |
865 |
20.0 |
12 |
0.76 |
2.03 |
23.75 |
932 |
20.0 |
13 |
0.76 |
2.03 |
24.13 |
997 |
20.0 |
14 |
0.76 |
2.03 |
24.89 |
1064 |
20.0 |
15 |
0.76 |
2.03 |
25.65 |
1131 |
20.0 |
20 |
0.76 |
2.03 |
28.58 |
1463 |
20.0 |
25 |
0.76 |
2.03 |
32.00 |
1799 |
18.0 |
30 |
0.76 |
2.03 |
34.16 |
2124 |
18.0 |
35 |
0.76 |
2.03 |
36.32 |
2447 |
16.0 |
40 |
0.76 |
2.03 |
38.35 |
2770 |
16.0 |
45 |
0.76 |
2.03 |
40.77 |
3098 |
14.0 |
50 |
0.76 |
2.03 |
42.29 |
3417 |
14.0 |
12AWG, 600V, Rated 90°C
No. of Cores |
Insulation Thickness |
Jacket Thickness |
Nom. O.D. |
Approx. Weight |
Ampacity |
(mm) |
(mm) |
(mm) |
(kg/km) |
(amps) |
2 |
0.76 |
1.14 |
10.67 |
140 |
30.0 |
3 |
0.76 |
1.14 |
11.30 |
188 |
30.0 |
4 |
0.76 |
1.14 |
12.32 |
238 |
24.0/30.0 |
5 |
0.76 |
1.14 |
13.59 |
289 |
24.0 |
6 |
0.76 |
1.52 |
15.49 |
366 |
24.0 |
7 |
0.76 |
1.52 |
15.49 |
406 |
21.0 |
8 |
0.76 |
1.52 |
16.76 |
432 |
21.0 |
9 |
0.76 |
1.52 |
18.03 |
507 |
21.0 |
10 |
0.76 |
1.52 |
19.18 |
530 |
15.0 |
11 |
0.76 |
1.52 |
19.56 |
573 |
15.0 |
12 |
0.76 |
1.52 |
20.19 |
619 |
15.0 |
13 |
0.76 |
1.52 |
20.57 |
662 |
15.0 |
14 |
0.76 |
1.52 |
21.21 |
708 |
15.0 |
15 |
0.76 |
1.52 |
21.84 |
753 |
15.0 |
19 |
0.76 |
2.03 |
24.26 |
975 |
15.0 |
20 |
0.76 |
2.03 |
25.27 |
1028 |
15.0 |
25 |
0.76 |
2.03 |
28.32 |
1260 |
13.5 |
30 |
0.76 |
2.03 |
30.23 |
1481 |
13.5 |
35 |
0.76 |
2.03 |
32.13 |
1700 |
12.0 |
37 |
0.76 |
2.03 |
32.13 |
1897 |
12.0 |
40 |
0.76 |
2.03 |
33.91 |
1918 |
12.0 |
45 |
0.76 |
2.03 |
35.81 |
2140 |
10.5 |
50 |
0.76 |
2.03 |
37.21 |
2354 |
10.5 |
|
