600V/1000V XLPE Insulated Galvanized Steel Tape Armored Cable with Lead Cover to IEC 60502-1

Applications

These cables are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where require hydrocarbon and mechanical protections. The lead sheath brings an enhanced resistance to aliphatic and aromatic hydrocarbon.

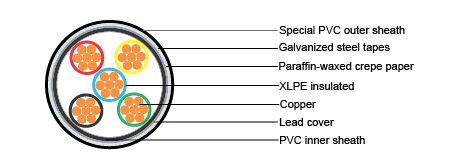

Construction

  • Conductor: Solid or stranded copper
  • Insulation: XLPE
  • Core identification
  • 1 Core: Red or Black
  • 2 Cores: Red, Black
  • 3 Cores: Red, Yellow, Blue
  • 4 Cores: Red, Yellow, Blue, Black
  • 5 Cores: Red, Yellow, Blue, Black, Green
  • Above 5 cores: Black core printed with white numbers
  • Inner sheath: PVC
  • Lead cover
  • Bedding: Paraffin-waxed crepe paper
  • Armor: Galvanized steel tapes or aluminum tapes for 1 core cable
  • Sheath: Special PVC. Color: black

Properties

  • Rated voltage: 600V/1000V
  • Fire retardance: IEC 60332-3-22
  • Operating temperature: -20~60°C
  • Max. conductor operating temperature: 90°C
  • Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
