600V/1000V XLPE Insulated Overall Screened & Steel Wire Armored Cable to IEC 60502-1


These cables are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants and where aliphatic and aromatic hydrocarbon may be present or where require chemical and mechanical protections.

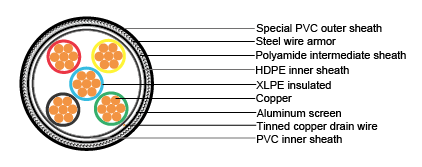

  • Conductor: Solid or stranded copper
  • Insulation: XLPE
  • Core identification
  • 1 Core: Red or Black
  • 2 Cores: Red, Black
  • 3 Cores: Red, Yellow, Blue
  • 4 Cores: Red, Yellow, Blue, Black
  • 5 Cores: Red, Yellow, Blue, Black, Green
  • Above 5 cores: Black core printed with white numbers
  • Inner sheath: PVC. Color: black
  • Screen: aluminum/polyethylene tape with tinned copper drain wire
  • Inner sheath: HDPE. Color: black
  • Intermediate sheath: Polyamide
  • Armor: Galvanized steel wires or aluminum wires for 1 core cable
  • Sheath: Speical PVC. Color: black


  • Rated voltage: 600V/1000V
  • Fire retardance: IEC 60332-3-22
  • Operating temperature: -20~60°C
  • Max. conductor operating temperature: 90°C
  • Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
  • For detailed data for this cable, welcome to go to the DOWNLOAD area for document download or online viewing.
