600V/1000V XLPE Insulated Steel Wire Armored Cable to IEC 60502-1


These cables are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where require chemical and mechanical protections.

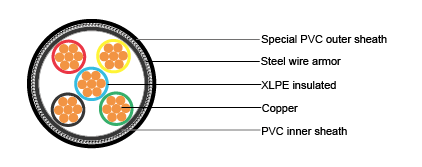

  • Conductor: Solid or stranded copper
  • Insulation: XLPE
  • Core identification
  • 1 Core: Red or Black
  • 2 Cores: Red, Black
  • 3 Cores: Red, Yellow, Blue
  • 4 Cores: Red, Yellow, Blue, Black
  • 5 Cores: Red, Yellow, Blue, Black, Green
  • Above 5 cores: Black core printed with white numbers
  • Inner sheath: PVC. Color: black
  • Armor: Galvanized steel wires or aluminium wires for 1 core cable
  • Sheath: Special PVC. Color: black


  • Rated voltage: 600V/1000V
  • Fire retardance: IEC 60332-3-22
  • Operating temperature: -20~60°C
  • Max. conductor operating temperature: 90°C
  • Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
