600V/1000V XLPE Insulated Unarmored Cable to IEC 60502-1


These cables are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where chemicals may be present.

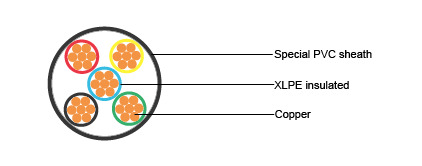

  • Conductor: Solid or stranded copper
  • Insulation: XLPE
  • Core identification
  • 1 Core: Red or Black
  • 2 Cores: Red, Black
  • 3 Cores: Red, Yellow, Blue
  • 4 Cores: Red, Yellow, Blue, Black
  • 5 Cores: Red, Yellow, Blue, Black, Green
  • Above 5 cores: Black core printed with white numbers
  • Sheath: Special PVC. Color: black


  • Rated voltage: 600V/1000V
  • Fire retardance: IEC 60332-3-22
  • Operating temperature: -20~60°C
  • Max. conductor operating temperature: 90°C
  • Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
  • For detailed data for this cable, welcome to go to the DOWNLOAD area for document download or online viewing.
