Mining Cable
Type 2S 1.1/1.1KV Collectively Screened
Applications
These collectively copper screened cables are used for wiring of machines or between machines and equipment wherea rubber cable is desired. These cables are also used for longwall lighting circuits, and may contain pilot and controlcores or twisted pair and screened cores.
Standards
AS/NZS 1972:2006
AS/NZS 1125
AS/NZS 3808

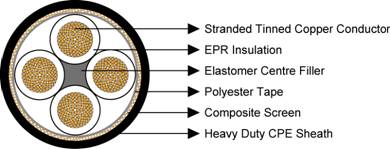

Construction
Conductors: Stranded tinned annealed copper conductor.
Insulation: EPR.
Filling: Elastomer centre filler.
Bedding: Polyester tape.
Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn.
Sheath: Heavy duty CPE sheathDimensions and Weight
Number of Core |
Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Core screen |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
|
Strand Size |
Area of Screen |
|||||||
|
mm² |
No/mm |
mm |
mm |
mm² |
mm |
mm |
kg/100m |
Type 2S 1.1/1kV Collectively Screened |
||||||||
2 |
1.5 |
30/0.25 |
1.0 |
0.20 |
5.3 |
1.8 |
14.7 |
17 |
4 |
1.5 |
30/0.25 |
1.0 |
0.20 |
12.1 |
1.8 |
19.9 |
26 |
6 |
1.5 |
30/0.25 |
1.0 |
0.20 |
22.6 |
1.8 |
25.7 |
35 |
16 |
1.5 |
30/0.25 |
1.0 |
0.25 |
113.1 |
1.8 |
47.1 |
71 |
20 |
1.5 |
30/0.25 |
1.0 |
0.25 |
159.0 |
1.8 |
53.2 |
82 |
