Type SHD-GC Three-Conductor Portable Power Cable, TPU Sheath 2kV
Applications
These heavy duty cables are designed for heavy mobile equipment such as drag lines, shovels, dredges, drills and for power feeders.
Standards
- ICEA S-75-381/NEMA WC 58
- ASTM B 172
- ASTM B 33
- CAN/CSA C22.2 No. 96

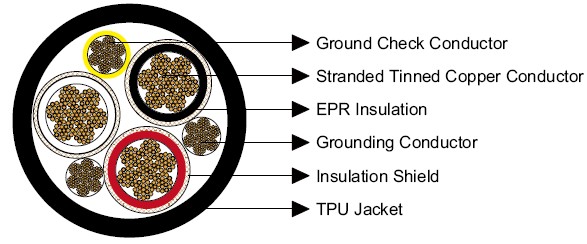

Construction
- Conductors: Stranded annealed tinned copper conductor.
- Insulation:EPR.
- Insulation Shield:Tinned copper/textile braid.
- Ground Check Conductor:Tinned copper conductor with a yellow polypropylene insulation.
- Grounding Conductor:Tinned copper conductor.
- Sheath: Thermoplastic Polyurethane (TPU) Jacket, black. Other sheath materials can be offered as an option.
Options
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties
- Minimum Bending Radius: 6×OD
- Maximum Operating Temperature: +90℃
Dimensions and Weight
Construction |
No. of Strands |
Grounding Conductor Size |
Ground Check Conductor Size |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
Ampacity |
||||
No. of cores×AWG/kcmil |
- |
AWG/kcmil |
AWG/kcmil |
inch |
mm |
inch |
mm |
inch |
mm |
lbs/kft |
kg/km |
A |
3×6 |
133 |
10 |
10 |
0.07 |
1.8 |
0.155 |
3.9 |
1.29 |
32.8 |
1069 |
1590 |
93 |
3×4 |
259 |
8 |
10 |
0.07 |
1.8 |
0.155 |
3.9 |
1.40 |
35.6 |
1295 |
1927 |
122 |
3×2 |
259 |
6 |
10 |
0.07 |
1.8 |
0.170 |
4.3 |
1.59 |
40.4 |
1778 |
2645 |
159 |
3×1 |
259 |
5 |
8 |
0.08 |
2.0 |
0.190 |
4.8 |
1.76 |
44.7 |
2163 |
3218 |
184 |
3×1/0 |
266 |
4 |
8 |
0.08 |
2.0 |
0.190 |
4.8 |
1.86 |
47.2 |
2508 |
3731 |
211 |
3×2/0 |
323 |
3 |
8 |
0.08 |
2.0 |
0.205 |
5.2 |
2.00 |
50.8 |
3001 |
4465 |
243 |
3×3/0 |
418 |
2 |
8 |
0.08 |
2.0 |
0.205 |
5.2 |
2.13 |
54.1 |
3470 |
5163 |
279 |
3×4/0 |
532 |
1 |
8 |
0.08 |
2.0 |
0.220 |
5.6 |
2.31 |
58.7 |
4192 |
6237 |
321 |
3×250 |
627 |
1/0 |
6 |
0.095 |
2.4 |
0.220 |
5.6 |
2.51 |
63.8 |
5213 |
7756 |
355 |
3×350 |
888 |
2/0 |
6 |
0.095 |
2.4 |
0.235 |
6.0 |
2.81 |
71.4 |
6824 |
10153 |
435 |
3×500 |
1221 |
4/0 |
6 |
0.095 |
2.4 |
0.265 |
6.7 |
3.19 |
81.0 |
9014 |
13411 |
536 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
