Type W Four-Conductor Flat Portable Power Cable 2kV
Applications
These cables are designed for general use where bare grounding conductors are not required or desired.
Standards
- ICEA S-75-381/NEMA WC 58
- ASTM B 172
- ASTM B 33
- CAN/CSA C22.2 No. 96

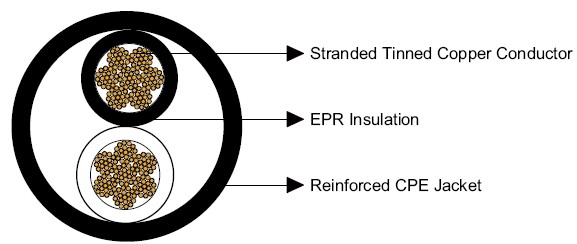

Construction
- Conductors: Stranded annealed tinned copper conductor.
- Insulation:EPR.
- Sheath: Reinforced extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be offered upon request.
Options
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties
- Minimum Bending Radius: 6×OD
- Maximum Operating Temperature: +90℃
Dimensions and Weight
Construction |
No. of Strands |
Nominal Insulation Thickness |
Nominal Overall Diameter |
Nominal Weight |
Ampacity |
|||
No. of cores×AWG/kcmil |
|
inch |
mm |
inch |
mm |
lbs/kft |
kg/km |
A |
2×8 |
166 |
0.06 |
1.5 |
0.83 |
21.1 |
391 |
581 |
72 |
2×6 |
259 |
0.06 |
1.5 |
0.94 |
23.9 |
571 |
849 |
95 |
2×4 |
412 |
0.06 |
1.5 |
1.07 |
27.3 |
793 |
1180 |
127 |
2×2 |
259 |
0.06 |
1.5 |
1.26 |
32.1 |
1142 |
1699 |
167 |
2×1/0 |
414 |
0.08 |
2.0 |
1.51 |
38.3 |
1693 |
2520 |
217 |
2×2/0 |
522 |
0.08 |
2.0 |
1.65 |
41.9 |
1908 |
2840 |
250 |
2×3/0 |
658 |
0.08 |
2.0 |
1.77 |
45.0 |
2600 |
3870 |
286 |
2×4/0 |
829 |
0.08 |
2.0 |
1.92 |
48.8 |
2675 |
3980 |
328 |
2×250 |
973 |
0.095 |
2.4 |
2.10 |
53.3 |
3434 |
5110 |
363 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
