NSSHOEU/NTSWOEU Submersible Cable Up To 6kv
Applications
These cables are used for the connection of electrical operating equipment inindustrial water, notably for submersible pumps.3-core cables without earth cores are used where theascending pipe serves as earth conductor.
Standards
VDE 0250 Part 812
VDE 0250 Part 813

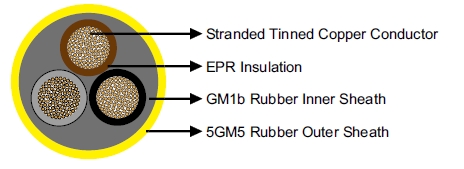

Construction
Conductors: Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Insulation: Heat resistant EPR.
InnerSheath: Rubbertype GM1b.
Outer Sheath: Chlorinated rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant (for 0.6/1kV). Chlorinated rubber type 5GM3, oil resistant and flame retardant (for 1.8/3kV, 3.6/6kV).
Dimensions and Weight
NSSHOEU 0.6/1kV
Number of Cores×Nominal Cross Section |
Nominal Overall Diameter |
Nominal Weight |
No. ×mm² |
mm |
kg/km |
3×4 |
17.0 |
400 |
3×10 |
22.0 |
720 |
3×16 |
26.0 |
1050 |
3×25 |
31.0 |
1500 |
3×35 |
35.0 |
2050 |
3×50 |
41.0 |
2820 |
3×70 |
45.0 |
3540 |
3×95 |
52.0 |
4750 |
4×25 |
35.0 |
2010 |
4×35 |
38.0 |
2530 |
4×50 |
45.0 |
3500 |
3×70/35 |
49.0 |
4190 |
NTSWOEU 1.8/3kV
Number of Cores×Nominal Cross Section |
Nominal Overall Diameter |
Nominal Weight |
No. ×mm² |
mm |
kg/km |
3×25 |
35.0 |
1840 |
3×35 |
39.0 |
2410 |
3×50 |
43.0 |
3040 |
3×70 |
48.0 |
3920 |
3×95 |
53.0 |
4950 |
NTSWOEU 3.6/6kV
Number of Cores×Nominal Cross Section |
Nominal Overall Diameter |
Nominal Weight |
No. ×mm² |
mm |
kg/km |
3×25 |
45.0 |
2690 |
3×35 |
47.0 |
3180 |
3×50 |
51.0 |
3860 |
3×70 |
56.0 |
4870 |
3×95 |
60.0 |
5870 |
