Mining Cable
NTSKCGERLOEU Medium-Voltage Coal Cutter Cable
Applications
These cables are used for the connection of mobile electrical equipment inunderground mines, e.g. for coal-cutting machines,especially for the use in bretby chains with extremebending loads under low tensile stress.
Standards
VDE 0250 Part 813

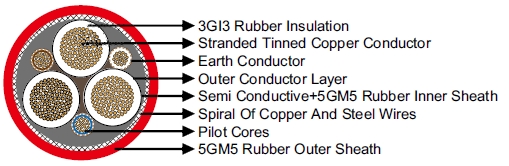

Construction
Conductors: Flexible stranded tinned copper conductor.
Insulation: Heatresistant3GI3 rubber based on EPR.
Outer Conductor Layer (for 3.6/6kV): Easy strippable outer conductive layer.
Pilot Cores:Copper/steel conductor capable ofexpansion and compression with EPRrubber insulation.
Earth Conductor: Spiral of tinnedcopper wires and a conductive tape.
InnerSheath: 2 layer design, semi conductive rubber + Rubber type 5GM5.
Armour: Spiral of steel wires,embedded in the outer sheath, fiberglas tape which preventssheath exchanging.
Outer Sheath: Rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant.
Dimensions and Weight
1.8/3 (3.6) kV
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No.×mm² |
mm |
mm |
kg/km |
3×35+3×(1.5ST+25/3)+UEL |
44.0 |
49.0 |
3900 |
3×50+3×(1.5ST+25/3)+UEL |
50.0 |
55.0 |
5100 |
3×70+3×(1.5ST+35/3)+UEL |
52.0 |
56.0 |
6200 |
3×95+3×(1.5ST+50/3)+UEL |
58.0 |
62.0 |
7500 |
3×120+3×(1.5ST+70/3)+UEL |
64.0 |
70.0 |
9350 |
3.6/6 (7.2) kV
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
No.×mm² |
mm |
mm |
kg/km |
3×35+3×(1.5ST+25/3)+UEL |
49.0 |
54.0 |
5800 |
3×50+3×(1.5ST+25/3)+UEL |
56.0 |
61.0 |
6100 |
3×70+3×(1.5ST+35/3)+UEL |
57.0 |
62.0 |
6700 |
3×95+3×(1.5ST+50/3)+UEL |
62.0 |
66.0 |
8000 |
3×120+3×(1.5ST+70/3)+UEL |
67.0 |
71.0 |
10200 |
