[FA-] DPY, TPY, FPY, 5PY, 6PY
[FA-] DPYC, TPYC, FPYC, 5PYC, 6PYC
[FA-] DPYCY, TPYCY, FPYCY, 5PYCY, 6PYCY



Standards

JISC 3410-1999
IEC 60332-1JIS Shipboard Cables
IEC 60332-3 Cat.A(for FA-type)

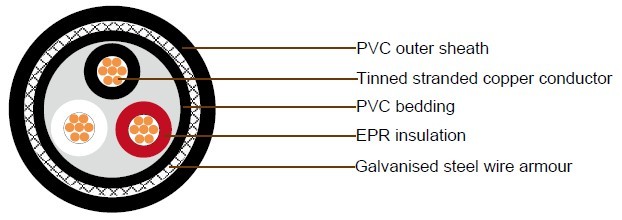

Cable Construction

Conductor

D(T,F,5,6,10)

Tinned annealed stranded copper, class 2 according to IEC 60228

Insulation

P

85°C EPR as per JIS C 3410

Cabling



Insulated conductors shall be cabled.
Flame retardant & non-hygroscopic fillers may be used

Bedding

Y

PVC as per JIS C 3410

Armor

C

Galvanized steel wire braid

Sheath

Y

PVC as per JIS C 3410

Core identification



2C Black, White -
3C / 2C+E Black, White, Red/ Black, White, G/Y
4C / 3C+E Black, White, Red, Green /Black, White, Red, G/Y
5C and over Black No. on white insulation /Black No. on white insulation, G/Y

Outer sheath
color



Black

Cable Parameter

0.6/1KV (FA-) DPY

Conductor Thick. of
insulation
Thick. of
bedding
(FA-) DPY
Size Construction O.D Nominal
overall
dia.
Tolerance Cable
weight
(Approx.)
mm² No./mm mm mm mm mm mm Kg / Km

1.5

7/0.53

1.59

1

1.1

10.4

0.5

120

2.5

7/0.67

2.01

1

1.2

11.5

0.5

155

4

7/0.85

2.55

1

1.2

12.6

0.6

200

6

7/1.04

3.12

1

1.3

13.9

0.6

255

10

7/1.35

4.05

1

1.3

15.8

0.7

360

16

7/1.70

5.1

1

1.4

18.1

0.8

515

25

7/2.14

6.42

1.2

1.5

21.7

0.9

770

35

7/2.52

7.56

1.2

1.6

24.2

1

1010

50

19/1.78

8.9

1.4

1.8

28.1

1.2

1360

70

19/2.14

10.7

1.6

2

33.3

1.4

1930

95

19/2.52

12.6

1.6

2.1

37.3

1.6

2550

120

37/2.03

14.2

1.6

2.3

40.9

1.6

3150

150

37/2.25

15.8

1.8

2.4

45

1.7

3840

185

37/2.52

17.6

2

2.6

50

1.9

4780

0.6/1KV (FA-) DPYC

Conductor Thick. of
insulation
Thick. of
bedding
Dia. of steel
wire
(FA-) DPYC
Size Construction O.D Nominal
overall
dia.
Tolerance Cable
weight
(Approx.)
mm² No./mm mm mm mm mm mm mm Kg / Km

1.5

7/0.53

1.59

1

1.1

0.3

11.7

0.5

205

2.5

7/0.67

2.01

1

1.2

0.3

12.8

0.5

250

4

7/0.85

2.55

1

1.2

0.3

13.9

0.6

300

6

7/1.04

3.12

1

1.3

0.3

15.2

0.6

370

10

7/1.35

4.05

1

1.3

0.3

17.1

0.7

490

16

7/1.70

5.1

1

1.4

0.3

19.4

0.8

660

25

7/2.14

6.42

1.2

1.5

0.3

23

0.9

945

35

7/2.52

7.56

1.2

1.6

0.3

25.5

1

1200

50

19/1.78

8.9

1.4

1.8

0.3

29.4

1.2

1580

70

19/2.14

10.7

1.6

2

0.4

35.1

1.4

2300

95

19/2.52

12.6

1.6

2.1

0.4

39.1

1.6

2960

120

37/2.03

14.2

1.6

2.3

0.4

42.7

1.6

3600

150

37/2.25

15.8

1.8

2.4

0.4

46.8

1.7

4330

185

37/2.52

17.6

2

2.6

0.4

51.8

1.9

5330

0.6/1KV (FA-) DPYCY

Conductor Thick. of
insulation
Thick. of
bedding
Dia. of
steel wire
(FA-) DPYCY
Size Construction O.D Thick.of
covering
Nominal
overall
dia.
Tolerance Cable
weight
(Approx.)
mm² No./mm mm mm mm mm mm mm mm Kg / Km

1.5

7/0.53

1.59

1

1.1

0.3

0.9

13.7

0.5

260

2.5

7/0.67

2.01

1

1.2

0.3

0.9

14.8

0.6

310

4

7/0.85

2.55

1

1.2

0.3

0.9

15.9

0.6

365

6

7/1.04

3.12

1

1.3

0.3

1

17.4

0.7

445

10

7/1.35

4.05

1

1.3

0.3

1

19.3

0.8

575

16

7/1.70

5.1

1

1.4

0.3

1.1

21.8

0.9

765

25

7/2.14

6.42

1.2

1.5

0.3

1.2

25.6

1

1080

35

7/2.52

7.56

1.2

1.6

0.3

1.2

28.1

1.1

1350

50

19/1.78

8.9

1.4

1.8

0.3

1.3

32.2

1.3

1770

70

19/2.14

10.7

1.6

2

0.4

1.5

38.5

1.5

2570

95

19/2.52

12.6

1.6

2.1

0.4

1.6

42.7

1.6

3280

120

37/2.03

14.2

1.6

2.3

0.4

1.7

46.5

1.7

3970

150

37/2.25

15.8

1.8

2.4

0.4

1.8

50.8

1.8

4750

185

37/2.52

17.6

2

2.6

0.4

1.9

56

1.9

5810

0.6/1KV (FA-) TPY

Conductor Thick. of
insulation
Thick. of
bedding
(FA-) TPY
Size Construction O.D Nominal
overall
dia.
Tolerance Cable
weight
(Approx.)
mm² No./mm mm mm mm mm mm Kg / Km

1.5

7/0.53

1.59

1.0

1.2

11.2

0.5

150

2.5

7/0.67

2.01

1.0

1.2

12.2

0.5

195

4

7/0.85

2.55

1.0

1.2

13.4

0.6

255

6

7/1.04

3.12

1.0

1.3

14.8

0.6

335

10

7/1.35

4.05

1.0

1.4

17.0

0.7

485

16

7/1.70

5.1

1.0

1.5

19.5

0.8

700

25

7/2.14

6.42

1.2

1.6

23.4

1.0

1060

35

7/2.52

7.56

1.2

1.7

26.1

1.1

1390

50

19/1.78

8.9

1.4

1.9

30.2

1.3

1870

70

19/2.14

10.7

1.6

2.1

35.8

1.5

2660

95

19/2.52

12.6

1.6

2.2

40.1

1.6

3530

120

37/2.03

14.2

1.6

2.4

44.0

1.7

4370

150

37/2.25

15.8

1.8

2.5

48.4

1.8

5340

185

37/2.52

17.6

2.0

2.7

53.7

1.9

6640

240

61/2.25

20.25

2.2

3.0

60.4

2.3

8880

0.6/1KV (FA-) TPYC

Conductor Thick. of
insulation
Thick. of
bedding
Dia. of steel
wire
(FA-) TPYC
Size Construction O.D Nominal
overall
dia.
Tolerance Cable
weight
(Approx.)
mm² No./mm mm mm mm mm mm mm Kg / Km

1.5

7/0.53

1.59

1.0

1.2

0.3

12.5

0.5

245

2.5

7/0.67

2.01

1.0

1.2

0.3

13.5

0.5

295

4

7/0.85

2.55

1.0

1.2

0.3

14.7

0.6

365

6

7/1.04

3.12

1.0

1.3

0.3

16.1

0.6

455

10

7/1.35

4.05

1.0

1.4

0.3

18.3

0.7

625

16

7/1.70

5.1

1.0

1.5

0.3

20.8

0.8

855

25

7/2.14

6.42

1.2

1.6

0.3

24.7

1.0

1240

35

7/2.52

7.56

1.2

1.7

0.3

27.4

1.1

1600

50

19/1.78

8.9

1.4

1.9

0.4

32.0

1.3

2200

70

19/2.14

10.7

1.6

2.1

0.4

37.6

1.5

3050

95

19/2.52

12.6

1.6

2.2

0.4

41.9

1.6

3980

120

37/2.03

14.2

1.6

2.4

0.4

45.8

1.7

4860

150

37/2.25

15.8

1.8

2.5

0.4

50.2

1.8

5870

185

37/2.52

17.6

2.0

2.7

0.4

55.5

1.9

7230

240

61/2.25

20.25

2.2

3.0

0.4

62.7

2.3

10100

0.6/1KV (FA-) TPYCY

Conductor Thick. of
insulation
Thick. of
bedding
Dia. of steel
wire
Thick. of
covering
(FA-) TPYCY
Size Construction O.D Nominal
overall
dia.
Tolerance Cable
weight
(Approx.)
mm² No./mm mm mm mm mm mm mm mm Kg / Km

1.5

7/0.53

1.59

1.0

1.2

0.3

0.9

14.5

0.6

300

2.5

7/0.67

2.01

1.0

1.2

0.3

0.9

15.5

0.6

355

4

7/0.85

2.55

1.0

1.2

0.3

1.0

16.9

0.7

440

6

7/1.04

3.12

1.0

1.3

0.3

1.0

18.3

0.7

535

10

7/1.35

4.05

1.0

1.4

0.3

1.1

20.7

0.8

725

16

7/1.70

5.1

1.0

1.5

0.3

1.1

23.2

0.9

970

25

7/2.14

6.42

1.2

1.6

0.3

1.2

27.3

1.1

1390

35

7/2.52

7.56

1.2

1.7

0.3

1.3

30.2

1.2

1770

50

19/1.78

8.9

1.4

1.9

0.4

1.4

35.0

1.4

2420

70

19/2.14

10.7

1.6

2.1

0.4

1.5

41.0

1.6

3350

95

19/2.52

12.6

1.6

2.2

0.4

1.6

45.5

1.7

4320

120

37/2.03

14.2

1.6

2.4

0.4

1.7

49.6

1.8

5250

150

37/2.25

15.8

1.8

2.5

0.4

1.9

54.2

1.9

6340

185

37/2.52

17.6

2.0

2.7

0.4

2.0

59.7

2.0

7780

240

61/2.25

20.25

2.2

3.0

0.4

2.2

67.2

3.4

10376

0.6/1KV (FA-) FPY

Conductor Thick. of
insulation
Thick. of
bedding
(FA-) FPY
Size Construction O.D Nominal
overall
dia.
Tolerance Cable
weight
(Approx.)
mm² No./mm mm mm mm mm mm Kg / Km

1.5

7/0.53

1.59

1.0

1.2

11.8

0.6

230

2.5

7/0.67

2.01

1.0

1.2

12.8

0.6

290

4

7/0.85

2.55

1.0

1.3

14.4

0.7

380

6

7/1.04

3.12

1.0

1.3

15.8

0.8

500

10

7/1.35

4.05

1.0

1.4

18.3

0.9

730

16

7/1.70

5.1

1.0

1.5

21.0

1.1

1050

25

7/2.14

6.42

1.2

1.7

25.7

1.3

1590

35

7/2.52

7.56

1.2

1.8

28.6

1.4

2090

50

19/1.78

8.9

1.4

2.0

33.5

1.7

2810

70

19/2.14

10.7

1.4

2.1

38.1

1.9

3990

95

19/2.52

12.6

1.6

2.4

44.4

2.2

5300

120

37/2.03

14.2

1.6

2.5

48.7

2.4

6560

150

37/2.25

15.8

1.8

2.7

54.0

2.7

8010

185

37/2.52

17.6

2.0

2.9

59.8

3.0

9960

0.6/1KV (FA-) FPYC

Conductor Thick. of
insulation
Thick. of
bedding
Dia. of steel
wire
(FA-) FPYC
Size Construction O.D Nominal
overall
dia.
Tolerance Cable
weight
(Approx.)
mm² No./mm mm mm mm mm mm mm Kg / Km

1.5

7/0.53

1.59

1.0

1.2

0.3

13.4

0.7

370

2.5

7/0.67

2.01

1.0

1.2

0.3

14.4

0.7

440

4

7/0.85

2.55

1.0

1.3

0.3

16.0

0.8

550

6

7/1.04

3.12

1.0

1.3

0.3

17.4

0.9

680

10

7/1.35

4.05

1.0

1.4

0.3

19.9

1.0

940

16

7/1.70

5.1

1.0

1.5

0.3

22.6

1.1

1280

25

7/2.14

6.42

1.2

1.7

0.3

27.3

1.4

1860

35

7/2.52

7.56

1.2

1.8

0.3

30.2

1.5

2400

50

19/1.78

8.9

1.4

2.0

0.4

35.6

1.8

3300

70

19/2.14

10.7

1.4

2.1

0.4

40.2

2.0

4580

95

19/2.52

12.6

1.6

2.4

0.4

46.5

2.3

5970

120

37/2.03

14.2

1.6

2.5

0.4

50.8

2.5

7290

150

37/2.25

15.8

1.8

2.7

0.4

56.1

2.8

8810

185

37/2.52

17.6

2.0

2.9

0.4

61.9

3.1

10850

0.6/1KV (FA-) FPYCY

Conductor Thick. of
insulation
Thick. of
bedding
Dia. of steel
wire
Thick. of
covering
(FA-) FPYCY
Size Construction O.D Nominal
overall
dia.
Tolerance Cable
weight
(Approx.)
mm² No./mm mm mm mm mm mm mm mm Kg / Km

1.5

7/0.53

1.59

1.0

1.2

0.3

0.9

15.4

0.8

450

2.5

7/0.67

2.01

1.0

1.2

0.3

1.0

16.4

0.8

530

4

7/0.85

2.55

1.0

1.3

0.3

1.0

18.1

0.9

660

6

7/1.04

3.12

1.0

1.3

0.3

1.0

19.6

1.0

800

10

7/1.35

4.05

1.0

1.4

0.3

1.1

22.2

1.1

1090

16

7/1.70

5.1

1.0

1.5

0.3

1.2

25.1

1.3

1460

25

7/2.14

6.42

1.2

1.7

0.3

1.3

30.0

1.5

2090

35

7/2.52

7.56

1.2

1.8

0.3

1.4

33.1

1.7

2660

50

19/1.78

8.9

1.4

2.0

0.4

1.5

38.8

1.9

3630

70

19/2.14

10.7

1.4

2.1

0.4

1.6

43.6

2.2

5030

95

19/2.52

12.6

1.6

2.4

0.4

1.8

50.2

2.5

6480

120

37/2.03

14.2

1.6

2.5

0.4

1.9

54.8

2.7

7880

150

37/2.25

15.8

1.8

2.7

0.4

2.0

60.4

3.0

9510

185

37/2.52

17.6

2.0

2.9

0.4

2.1

66.5

3.3

11670

0.6/1KV (FA-) 5PY

Conductor Thick. of
insulation
Thick. of
bedding
(FA-) 5PY
Size Construction O.D Nominal
overall
dia.
Tolerance Cable
weight
(Approx.)
mm² No./mm mm mm mm mm mm Kg / Km

1.5

7/0.53

1.59

1.0

1.2

12 8

0.6

270

2.5

7/0.67

2.01

1.0

1.3

14.2

0.7

340

4

7/0.85

2.55

1.0

1.3

15.7

0.8

440

6

7/1.04

3.12

1.0

1.4

17.5

0.9

570

10

7/1.35

4.05

1.0

1.5

20.2

1.0

840

16

7/1.70

5.1

1.0

1.6

23.2

1.2

1200

25

7/2.14

6.42

1.2

1.8

28.4

1.4

1820

35

7/2.52

7.56

1.2

1.9

31.7

1.6

2390

50

19/1.78

8.9

1.4

2.1

37.1

1.9

3210

70

19/2.14

10.7

1.4

2.3

42.4

2.1

4550

95

19/2.52

12.6

1.6

2.6

49.6

2.5

6050

120

37/2.03

14.2

1.6

2.7

54.1

2.7

7480

150

37/2.25

15.8

1.8

3.0

60.2

3.0

9140

185

37/2.52

17.6

2.0

3.2

66.6

3.3

11360

0.6/1KV (FA-) 5PYC

Conductor Thick. of
insulation
Thick. of
bedding
Dia. of steel
wire
(FA-) 5PYC
Size Construction O.D Nominal
overall
dia.
Tolerance Cable
weight
(Approx.)
mm² No./mm mm mm mm mm mm mm Kg / Km

1.5

7/0.53

1.59

1.0

1.2

0.3

14.4

0.7

430

2.5

7/0.67

2.01

1.0

1.3

0.3

15.8

0.8

510

4

7/0.85

2.55

1.0

1.3

0.3

17.3

0.9

630

6

7/1.04

3.12

1.0

1.4

0.3

19.1

1.0

780

10

7/1.35

4.05

1.0

1.5

0.3

21.8

1.1

1080

16

7/1.70

5.1

1.0

1.6

0.3

24.8

1.2

1460

25

7/2.14

6.42

1.2

1.8

0.3

30.0

1.5

2130

35

7/2.52

7.56

1.2

1.9

0.4

33.8

1.7

2740

50

19/1.78

8.9

1.4

2.1

0.4

39.2

2.0

3770

70

19/2.14

10.7

1.4

2.3

0.4

44.5

2.2

5230

95

19/2.52

12.6

1.6

2.6

0.4

51.7

2.6

6810

120

37/2.03

14.2

1.6

2.7

0.4

56.2

2.8

8320

150

37/2.25

15.8

1.8

3.0

0.4

62.3

3.1

10050

185

37/2.52

17.6

2.0

3.2

0.4

68.7

3.4

12370

0.6/1KV (FA-) 5PYCY

Conductor Thick. of
insulation
Thick. of
bedding
Dia. of steel
wire
Thick. of
covering
(FA-) 5PYCY
Size Construction O.D Nominal
overall
dia.
Tolerance Cable
weight
(Approx.)
mm² No./mm mm mm mm mm mm mm mm Kg / Km

1.5

7/0.53

1.59

1.0

1.2

0.3

1.0

16.5

0.8

520

2.5

7/0.67

2.01

1.0

1.3

0.3

1.0

17.9

0.9

610

4

7/0.85

2.55

1.0

1.3

0.3

1.0

19.4

1.0

760

6

7/1.04

3.12

1.0

1.4

0.3

1.1

21.5

1.1

920

10

7/1.35

4.05

1.0

1.5

0.3

1.1

24.2

1.2

1250

16

7/1.70

5.1

1.0

1.6

0.3

1.2

27.4

1.4

1670

25

7/2.14

6.42

1.2

1.8

0.3

1.4

33.0

1.7

2390

35

7/2.52

7.56

1.2

1.9

0.4

1.4

36.8

1.8

3040

50

19/1.78

8.9

1.4

2.1

0.4

1.6

42.6

2.1

4140

70

19/2.14

10.7

1.4

2.3

0.4

1.7

48.1

2.4

5740

95

19/2.52

12.6

1.6

2.6

0.4

1.9

55.8

2.8

7390

120

37/2.03

14.2

1.6

2.7

0.4

2.0

60.5

3.0

8990

150

37/2.25

15.8

1.8

3.0

0.4

2.2

67.0

3.4

10850

185

37/2.52

17.6

2.0

3.2

0.4

2.3

73.6

3.7

13310

0.6/1KV (FA-) 6PY

Conductor Thick. of
insulation
Thick. of
bedding
(FA-) 6PY
Size Construction O.D Nominal
overall
dia.
Tolerance Cable
weight
(Approx.)
mm² No./mm mm mm mm mm mm Kg / Km

1.5

7/0.53

1.59

1.0

1.3

14.1

0.7

310

2.5

7/0.67

2.01

1.0

1.3

15.4

0.8

390

4

7/0.85

2.55

1.0

1.4

17.3

0.9

510

6

7/1.04

3.12

1.0

1.4

19.0

1.0

650

10

7/1.35

4.05

1.0

1.6

22.2

1.1

960

16

7/1.70

5.1

1.0

1.7

25.6

1.3

1370

25

7/2.14

6.42

1.2

1.9

31.3

1.6

2080

35

7/2.52

7.56

1.2

2.0

34.9

1.7

2730

50

19/1.78

8.9

1.4

2.2

40.9

2.0

3660

70

19/2.14

10.7

1.4

2.5

47.0

2.4

5190

95

19/2.52

12.6

1.6

2.8

54.9

2.7

6900

120

37/2.03

14.2

1.6

2.9

59.9

3.0

8530

150

37/2.25

15.8

1.8

3.2

66.5

3.3

10420

185

37/2.52

17.6

2.0

3.5

73.9

3.7

12960

0.6/1KV (FA-) 6PYC

Conductor Thick. of
insulation
Thick. of
bedding
Dia. of steel
wire
(FA-) 6PYC
Size Construction O.D Nominal
overall
dia.
Tolerance Cable
weight
(Approx.)
mm² No./mm mm mm mm mm mm mm Kg / Km

1.5

7/0.53

1.59

1.0

1.3

0.3

15.7

0.8

500

2.5

7/0.67

2.01

1.0

1.3

0.3

17.0

0.9

590

4

7/0.85

2.55

1.0

1.4

0.3

18.9

0.9

720

6

7/1.04

3.12

1.0

1.4

0.3

20.6

1.0

890

10

7/1.35

4.05

1.0

1.6

0.3

23.8

1.2

1240

16

7/1.70

5.1

1.0

1.7

0.3

27.2

1.4

1670

25

7/2.14

6.42

1.2

1.9

0.3

32.9

1.6

2430

35

7/2.52

7.56

1.2

2.0

0.4

37.0

1.9

3130

50

19/1.78

8.9

1.4

2.2

0.4

43.0

2.2

4300

70

19/2.14

10.7

1.4

2.5

0.4

49.1

2.5

5970

95

19/2.52

12.6

1.6

2.8

0.4

57.0

2.9

7770

120

37/2.03

14.2

1.6

2.9

0.4

62.0

3.1

9490

150

37/2.25

15.8

1.8

3.2

0.4

68.6

3.4

11460

185

37/2.52

17.6

2.0

3.5

0.4

76.0

3.8

14110

0.6/1KV (FA-) 6PYCY

Conductor Thick. of
insulation
Thick. of
bedding
Dia. of steel
wire
Thick. of
covering
(FA-) 6PYCY
Size Construction O.D Nominal
overall
dia.
Tolerance Cable
weight
(Approx.)
mm² No./mm mm mm mm mm mm mm mm Kg / Km

1.5

7/0.53

1.59

1.0

1.3

0.3

1.0

17.8

0.9

600

2.5

7/0.67

2.01

1.0

1.3

0.3

1.0

19.1

1.0

700

4

7/0.85

2.55

1.0

1.4

0.3

1.1

21.3

1.1

870

6

7/1.04

3.12

1.0

1.4

0.3

1.1

23.0

1.2

1050

10

7/1.35

4.05

1.0

1.6

0.3

1.2

26.4

1.3

1430

16

7/1.70

5.1

1.0

1.7

0.3

1.3

30.0

1.5

1910

25

7/2.14

6.42

1.2

1.9

0.3

1.4

35.9

1.8

2730

35

7/2.52

7.56

1.2

2.0

0.4

1.5

40.2

2.0

3470

50

19/1.78

8.9

1.4

2.2

0.4

1.7

46.6

2.3

4720

70

19/2.14

10.7

1.4

2.5

0.4

1.8

53.0

2.7

6550

95

19/2.52

12.6

1.6

2.8

0.4

2.0

61.3

3.1

8430

120

37/2.03

14.2

1.6

2.9

0.4

2.2

66.7

3.3

10250

150

37/2.25

15.8

1.8

3.2

0.4

2.3

73.5

3.7

12370

185

37/2.52

17.6

2.0

3.5

0.4

2.5

81.4

4.1

15180
