Application

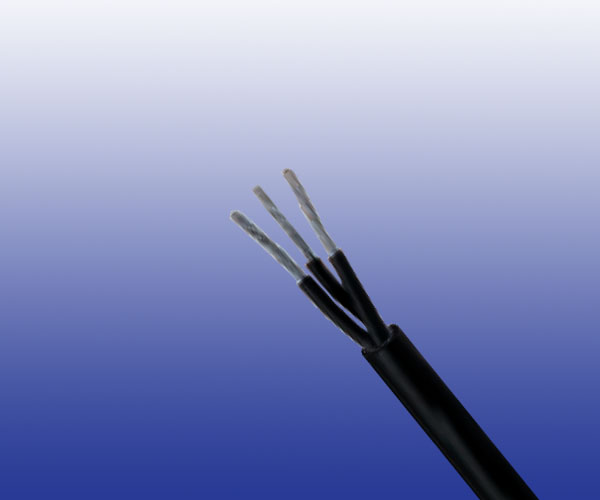

Multicore unscreened and screened power and control cable designed for protected, fi xed installation for connecting fi xed parts inside equipment.
Standards
● BS 6853 -1a
● DIN 5510-1 1-4
● NFF 16-101 F0
Construction
Conductors
Circular Class 5 stranded plain or tinned copper to BS EN 60228: 2005 / BS 6360.
Insulation 1
Electron beam crosslinkable thin wall LSZH compound.
Insulation 2
Electron beam crosslinkable thin wall LSZH compound..
Screen(optional)
Copper Wire Screen ( screened cables ).
Outer Sheath
Electron beam crosslinkable LSZH compound.
Optional
FRA-DW-1M-FR (Fire resistant )
Electrical Characteristics at 20℃
| Nominal Conductor Cross Section |
mm² |
0.25 |
0.5 |
0.75 |
1.0 |
1.5 |
2.5 |
| Maximum Conductor Resistance |
Ω/km |
88.5 |
40.1 |
26.7 |
20.0 |
13.7 |
8.21 |
| Voltage Rating |
KV |
0.6/1.0 |
Mechanical and Thermal Properties
Minimum Bending Radius:3×OD (OD<12mm); 4×OD (OD>12mm)
Temperature Range:-40℃ to +120℃
Dimensions And Weight
FRA-DW-1M (Multicore unscreened)
Cable Code |
No. of cores& Nominal
Conductor Cross Sectional
Area
No.×mm² |
Nominal
Diameter of
Strands
No/mm |
Nominal
Insulation
Thickness
mm |
Nominal Overall
Diameter
mm |
Nominal Weight
kg/km |
FRA-DW-1M-2C0.5S |
2×0.5 |
19/0.18 |
0.2 |
4.0 |
24 |
FRA-DW-1M-3C0.5S |
3×0.5 |
19/0.18 |
0.2 |
4.6 |
36 |
FRA-DW-1M-5C0.5S |
5×0.5 |
19/0.18 |
0.2 |
5.0 |
43 |
FRA-DW-1M-9C0.5S |
9×0.5 |
19/0.18 |
0.2 |
6.7 |
66 |
FRA-DW-1M-12C0.5S |
12×0.5 |
19/0.18 |
0.2 |
6.9 |
89 |
FRA-DW-1M-16C0.5S |
16×0.5 |
19/0.18 |
0.2 |
7.8 |
115 |
FRA-DW-1M-25C0.5S |
25×0.5 |
19/0.18 |
0.2 |
9.5 |
170 |
FRA-DW-1M-30C0.5S |
30×0.5 |
19/0.18 |
0.2 |
10.1 |
205 |
FRA-DW-1M-2P0.5S |
2×2×0.5 |
19/0.18 |
0.2 |
5.8 |
50 |
FRA-DW-1M-2C0.75S |
2×0.75 |
19/0.22 |
0.2 |
4.4 |
32 |
FRA-DW-1M-4C0.75S |
4×0.75 |
19/0.22 |
0.2 |
5.0 |
49 |
FRA-DW-1M-9C0.75S |
9×0.75 |
19/0.22 |
0.2 |
7.7 |
106 |
FRA-DW-1M-14C0.75S |
14×0.75 |
19/0.22 |
0.2 |
8.4 |
140 |
FRA-DW-1M-27C0.75S |
27×0.75 |
19/0.22 |
0.2 |
11.3 |
270 |
FRA-DW-1M-36C0.75S |
36×0.75 |
19/0.22 |
0.2 |
12.8 |
360 |
FRA-DW-1M-3C1S |
3×1.0 |
19/0.25 |
0.2 |
5.0 |
47 |
FRA-DW-1M-6C1S |
6×1.0 |
19/0.25 |
0.2 |
6.6 |
88 |
FRA-DW-1M-14C1S |
14×1.0 |
19/0.25 |
0.2 |
9.1 |
174 |
FRA-DW-1M-20C1S |
20×1.0 |
19/0.25 |
0.2 |
11.2 |
256 |
FRA-DW-1M-50C1S |
50×1.0 |
19/0.25 |
0.2 |
16.8 |
620 |
FRA-DW-1M-2C1.5S |
2×1.5 |
37/0.22 |
0.3 |
5.4 |
55 |
FRA-DW-1M-5C1.5S |
5×1.5 |
37/0.22 |
0.3 |
7.1 |
110 |
FRA-DW-1M-7C1.5S |
7×1.5 |
37/0.22 |
0.3 |
8.4 |
150 |
FRA-DW-1M-10C1.5S |
10×1.5 |
37/0.22 |
0.3 |
9.9 |
170 |
FRA-DW-1M-18C1.5S |
18×1.5 |
37/0.22 |
0.3 |
12.4 |
350 |
FRA-DW-1M-30C1.5S |
30×1.5 |
37/0.22 |
0.3 |
15.6 |
560 |
FRA-DW-1M-50C1.5S |
50×1.5 |
37/0.22 |
0.3 |
20.1 |
870 |
FRA-DW-1M-3C2.5S |
3×2.5 |
37/0.29 |
0.3 |
7.0 |
105 |
FRA-DW-1M-6C2.5S |
6×2.5 |
37/0.29 |
0.3 |
9.6 |
200 |
FRA-DW-1M-12C2.5S |
12×2.5 |
37/0.29 |
0.3 |
12.6 |
360 |
FRA-DW-1M-18C2.5S |
18×2.5 |
37/0.29 |
0.3 |
15.3 |
545 |
FRA-DW-1M-24C2.5S |
24×2.5 |
37/0.29 |
0.3 |
17.8 |
695 |
FRA-DW-1M-30C2.5S |
30×2.5 |
37/0.29 |
0.3 |
19.3 |
870 |
FRA-DW-1M-36C2.5S |
36×2.5 |
37/0.29 |
0.3 |
21.0 |
1050 |
FRA-DW-1M-OS (Multicore screened)
Cable Code |
No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm² |
Nominal
Diameter of
Strands
No/mm |
Nominal
Insulation
Thickness
mm |
Nominal
Overall
Diameter
mm |
Nominal
Weight
kg/km |
| FRA-DW-1M-OS-2P0.25S |
2×2×0.25 |
19/0.13 |
0.2 |
5.7 |
48.9 |
| FRA-DW-1M-OS-3P0.25S |
3×2×0.25 |
19/0.13 |
0.2 |
6.1 |
57.2 |
| FRA-DW-1M-OS-4P0.25S |
4×2×0.25 |
19/0.13 |
0.2 |
7.0 |
72 |
| FRA-DW-1M-OS-7P0.25S |
7×2×0.25 |
19/0.13 |
0.2 |
7.8 |
92 |
| FRA-DW-1M-OS-25C0.25S |
25×0.25 |
19/0.13 |
0.2 |
8.9 |
139 |
| FRA-DW-1M-OS-2C0.5S |
2×0.5 |
19/0.18 |
0.2 |
4.3 |
34 |
| FRA-DW-1M-OS-3C0.5S |
3×0.5 |
19/0.18 |
0.2 |
4.5 |
40 |
| FRA-DW-1M-OS-4C0.5S |
4×0.5 |
19/0.18 |
0.2 |
4.8 |
47 |
| FRA-DW-1M-OS-5C0.5S |
5×0.5 |
19/0.18 |
0.2 |
5.4 |
58 |
| FRA-DW-1M-OS-6C0.5S |
6×0.5 |
19/0.18 |
0.2 |
5.9 |
70 |
| FRA-DW-1M-OS-7C0.5S |
7×0.5 |
19/0.18 |
0.2 |
6.3 |
80 |
| FRA-DW-1M-OS-8C0.5S |
8×0.5 |
19/0.18 |
0.2 |
6.8 |
86 |
| FRA-DW-1M-OS-9C0.5S |
9×0.5 |
19/0.18 |
0.2 |
7.2 |
95 |
| FRA-DW-1M-OS-10C0.5S |
10×0.5 |
19/0.18 |
0.2 |
7.2 |
101 |
| FRA-DW-1M-OS-12C0.5S |
12×0.5 |
19/0.18 |
0.2 |
7.4 |
112 |
| FRA-DW-1M-OS-15C0.5S |
15×0.5 |
19/0.18 |
0.2 |
8.5 |
135 |
| FRA-DW-1M-OS-16C0.5S |
16×0.5 |
19/0.18 |
0.2 |
8.5 |
142 |
FRA-DW-1M-OS-18C0.5S |
18×0.5 |
19/0.18 |
0.2 |
8.9 |
162 |
FRA-DW-1M-OS-20C0.5S |
20×0.5 |
19/0.18 |
0.2 |
9.3 |
185 |
FRA-DW-1M-OS-22C0.5S |
22×0.5 |
19/0.18 |
0.2 |
9.9 |
195 |
FRA-DW-1M-OS-25C0.5S |
25×0.5 |
19/0.18 |
0.2 |
10.3 |
213 |
FRA-DW-1M-OS-27C0.5S |
27×0.5 |
19/0.18 |
0.2 |
10.5 |
231 |
FRA-DW-1M-OS-30C0.5S |
30×0.5 |
19/0.18 |
0.2 |
11.3 |
265 |
FRA-DW-1M-OS-36C0.5S |
36×0.5 |
19/0.18 |
0.2 |
12.1 |
301 |
FRA-DW-1M-OS-42C0.5S |
42×0.5 |
19/0.18 |
0.2 |
12.9 |
360 |
FRA-DW-1M-OS-48C0.5S |
48×0.5 |
19/0.18 |
0.2 |
13.6 |
410 |
FRA-DW-1M-OS-50C0.5S |
50×0.5 |
19/0.18 |
0.2 |
14.2 |
430 |
FRA-DW-1M-OS-2P0.5S |
2×2×0.5 |
19/0.18 |
0.2 |
6.4 |
69 |
FRA-DW-1M-OS-3P0.5S |
3×2×0.5 |
19/0.18 |
0.2 |
6.7 |
80 |
FRA-DW-1M-OS-4P0.5S |
4×2×0.5 |
19/0.18 |
0.2 |
7.4 |
95 |
FRA-DW-1M-OS-5P0.5S |
5×2×0.5 |
19/0.18 |
0.2 |
9.2 |
136 |
FRA-DW-1M-OS-6P0.5S |
6×2×0.5 |
19/0.18 |
0.2 |
9.2 |
148 |
FRA-DW-1M-OS-8P0.5S |
8×2×0.5 |
19/0.18 |
0.2 |
9.7 |
155 |
FRA-DW-1M-OS-10P0.5S |
10×2×0.5 |
19/0.18 |
0.2 |
10.9 |
200 |
FRA-DW-1M-OS-12P0.5S |
12×2×0.5 |
19/0.18 |
0.2 |
12.1 |
240 |
FRA-DW-1M-OS-15P0.5S |
15×2×0.5 |
19/0.18 |
0.2 |
13.0 |
300 |
FRA-DW-1M-OS-16P0.5S |
16×2×0.5 |
19/0.18 |
0.2 |
13.0 |
320 |
FRA-DW-1M-OS-20P0.5S |
20×2×0.5 |
19/0.18 |
0.2 |
14.4 |
360 |
FRA-DW-1M-OS-2T0.5S |
2×3×0.5 |
19/0.18 |
0.2 |
7.3 |
90 |
FRA-DW-1M-OS-2C0.75S |
2×0.75 |
19/0.22 |
0.2 |
4.8 |
40 |
FRA-DW-1M-OS-3C0.75S |
3×0.75 |
19/0.22 |
0.2 |
5.0 |
50 |
FRA-DW-1M-OS-4C0.75S |
4×0.75 |
19/0.22 |
0.2 |
5.5 |
62 |
FRA-DW-1M-OS-5C0.75S |
5×0.75 |
19/0.22 |
0.2 |
6.1 |
75 |
FRA-DW-1M-OS-6C0.75S |
6×0.75 |
19/0.22 |
0.2 |
6.6 |
85 |
FRA-DW-1M-OS-7C0.75S |
7×0.75 |
19/0.22 |
0.2 |
7.2 |
100 |
FRA-DW-1M-OS-8C0.75S |
8×0.75 |
19/0.22 |
0.2 |
7.8 |
113 |
FRA-DW-1M-OS-10C0.75S |
10×0.75 |
19/0.22 |
0.2 |
8.1 |
130 |
FRA-DW-1M-OS-12C0.75S |
12×0.75 |
19/0.22 |
0.2 |
8.4 |
150 |
FRA-DW-1M-OS-14C0.75S |
14×0.75 |
19/0.22 |
0.2 |
9.1 |
170 |
FRA-DW-1M-OS-16C0.75S |
16×0.75 |
19/0.22 |
0.2 |
9.7 |
206 |
FRA-DW-1M-OS-18C0.75S |
18×0.75 |
19/0.22 |
0.2 |
10.2 |
230 |
FRA-DW-1M-OS-20C0.75S |
20×0.75 |
19/0.22 |
0.2 |
11.1 |
258 |
FRA-DW-1M-OS-24C0.75S |
24×0.75 |
19/0.22 |
0.2 |
12.0 |
294 |
FRA-DW-1M-OS-25C0.75S |
25×0.75 |
19/0.22 |
0.2 |
12.3 |
300 |
FRA-DW-1M-OS-2P0.75S |
2×2×0.75 |
19/0.22 |
0.2 |
7.1 |
86 |
FRA-DW-1M-OS-3P0.75S |
3×2×0.75 |
19/0.22 |
0.2 |
7.6 |
109 |
FRA-DW-1M-OS-4P0.75S |
4×2×0.75 |
19/0.22 |
0.2 |
9.9 |
143 |
FRA-DW-1M-OS-5P0.75S |
5×2×0.75 |
19/0.22 |
0.2 |
10.7 |
182 |
FRA-DW-1M-OS-6P0.75S |
6×2×0.75 |
19/0.22 |
0.2 |
11.9 |
227 |
FRA-DW-1M-OS-7P0.75S |
7×2×0.75 |
19/0.22 |
0.2 |
13.4 |
279 |
FRA-DW-1M-OS-8P0.75S |
8×2×0.75 |
19/0.22 |
0.2 |
13.2 |
291 |
FRA-DW-1M-OS-10P0.75S |
10×2×0.75 |
19/0.22 |
0.2 |
14.8 |
333 |
FRA-DW-1M-OS-3T0.75S |
3×3×0.75 |
19/0.22 |
0.2 |
8.9 |
151 |
FRA-DW-1M-OS-5Q0.75S |
5×4×0.75 |
19/0.22 |
0.2 |
12.8 |
290 |
FRA-DW-1M-OS-2C1S |
2×1.0 |
19/0.25 |
0.2 |
5.0 |
50 |
FRA-DW-1M-OS-3C1S |
3×1.0 |
19/0.25 |
0.2 |
5.5 |
60 |
FRA-DW-1M-OS-4C1S |
4×1.0 |
19/0.25 |
0.2 |
5.8 |
72 |
FRA-DW-1M-OS-5C1S |
5×1.0 |
19/0.25 |
0.2 |
6.6 |
88 |
FRA-DW-1M-OS-6C1S |
6×1.0 |
19/0.25 |
0.2 |
7.3 |
114 |
FRA-DW-1M-OS-7C1S |
7×1.0 |
19/0.25 |
0.2 |
7.9 |
134 |
FRA-DW-1M-OS-8C1S |
8×1.0 |
19/0.25 |
0.2 |
8.5 |
150 |
FRA-DW-1M-OS-9C1S |
9×1.0 |
19/0.25 |
0.2 |
8.9 |
160 |
FRA-DW-1M-OS-10C1S |
10×1.0 |
19/0.25 |
0.2 |
8.9 |
168 |
FRA-DW-1M-OS-12C1S |
12×1.0 |
19/0.25 |
0.2 |
9.2 |
188 |
FRA-DW-1M-OS-16C1S |
16×1.0 |
19/0.25 |
0.2 |
10.5 |
250 |
FRA-DW-1M-OS-18C1S |
18×1.0 |
19/0.25 |
0.2 |
11.2 |
275 |
FRA-DW-1M-OS-25C1S |
25×1.0 |
19/0.25 |
0.2 |
12.7 |
357 |
FRA-DW-1M-OS-27C1S |
27×1.0 |
19/0.25 |
0.2 |
13.3 |
395 |
FRA-DW-1M-OS-30C1S |
30×1.0 |
19/0.25 |
0.2 |
13.8 |
450 |
FRA-DW-1M-OS-36C1S |
36×1.0 |
19/0.25 |
0.2 |
15.2 |
530 |
FRA-DW-1M-OS-42C1S |
42×1.0 |
19/0.25 |
0.2 |
16.3 |
605 |
FRA-DW-1M-OS-50C1S |
50×1.0 |
19/0.25 |
0.2 |
17.8 |
690 |
FRA-DW-1M-OS-2P1S |
2×2×1.0 |
19/0.25 |
0.2 |
7.9 |
107 |
FRA-DW-1M-OS-4P1S |
4×2×1.0 |
19/0.25 |
0.2 |
9.4 |
128 |
FRA-DW-1M-OS-6P1S |
6×2×1.0 |
19/0.25 |
0.2 |
11.6 |
240 |
FRA-DW-1M-OS-12P1S |
12×2×1.0 |
19/0.25 |
0.2 |
14.3 |
400 |
FRA-DW-1M-OS-4T1S |
4×3×1.0 |
19/0.25 |
0.2 |
11.5 |
230 |
FRA-DW-1M-OS-3Q1S |
3×4×1.0 |
19/0.25 |
0.2 |
11.3 |
245 |
FRA-DW-1M-OS-4Q1S |
4×4×1.0 |
19/0.25 |
0.2 |
12.5 |
267 |
FRA-DW-1M-OS-2C1.5S |
2×1.5 |
37/0.22 |
0.3 |
5.8 |
70 |
FRA-DW-1M-OS-3C1.5S |
3×1.5 |
37/0.22 |
0.3 |
6.1 |
81 |
FRA-DW-1M-OS-4C1.5S |
4×1.5 |
37/0.22 |
0.3 |
6.7 |
100 |
FRA-DW-1M-OS-5C1.5S |
5×1.5 |
37/0.22 |
0.3 |
7.7 |
135 |
FRA-DW-1M-OS-6C1.5S |
6×1.5 |
37/0.22 |
0.3 |
8.3 |
155 |
FRA-DW-1M-OS-7C1.5S |
7×1.5 |
37/0.22 |
0.3 |
9.1 |
184 |
FRA-DW-1M-OS-8C1.5S |
8×1.5 |
37/0.22 |
0.3 |
10.3 |
222 |
FRA-DW-1M-OS-9C1.5S |
9×1.5 |
37/0.22 |
0.3 |
10.5 |
234 |
FRA-DW-1M-OS-10C1.5S |
10×1.5 |
37/0.22 |
0.3 |
10.5 |
240 |
FRA-DW-1M-OS-12C1.5S |
12×1.5 |
37/0.22 |
0.3 |
10.9 |
268 |
FRA-DW-1M-OS-14C1.5S(G/Y) |
14G 1.5 |
37/0.22 |
0.3 |
12.2 |
333 |
FRA-DW-1M-OS-16C1.5S |
16×1.5 |
37/0.22 |
0.3 |
12.5 |
364 |
FRA-DW-1M-OS-18C1.5S |
18×1.5 |
37/0.22 |
0.3 |
13.2 |
405 |
FRA-DW-1M-OS-25C1.5S |
25×1.5* |
37/0.22 |
0.3 |
15.8 |
562 |
FRA-DW-1M-OS-48C1.5S |
48×1.5 |
37/0.22 |
0.3 |
20.7 |
989 |
FRA-DW-1M-OS-2P1.5S |
2×2×1.5 |
37/0.22 |
0.3 |
9.2 |
153 |
FRA-DW-1M-OS-3P1.5S |
3×2×1.5 |
37/0.22 |
0.3 |
9.8 |
205 |
FRA-DW-1M-OS-7P1.5S |
7×2×1.5 |
37/0.22 |
0.3 |
12.6 |
330 |
FRA-DW-1M-OS-2C2.5S |
2×2.5 |
37/0.29 |
0.3 |
7.0 |
105 |
FRA-DW-1M-OS-3C2.5S |
3×2.5 |
37/0.29 |
0.3 |
7.6 |
130 |
FRA-DW-1M-OS-4C2.5S |
4×2.5 |
37/0.29 |
0.3 |
8.4 |
170 |
FRA-DW-1M-OS-5C2.5S |
5×2.5 |
37/0.29 |
0.3 |
9.4 |
190 |
FRA-DW-1M-OS-6C2.5S |
6×2.5 |
37/0.29 |
0.3 |
10.4 |
225 |
FRA-DW-1M-OS-7C2.5S |
7×2.5 |
37/0.29 |
0.3 |
11.4 |
270 |
FRA-DW-1M-OS-8C2.5S |
8×2.5 |
37/0.29 |
0.3 |
12.6 |
343 |
FRA-DW-1M-OS-10C2.5S |
10×2.5 |
37/0.29 |
0.3 |
13.2 |
370 |
FRA-DW-1M-OS-12C2.5S |
12×2.5 |
37/0.29 |
0.3 |
13.6 |
420 |
FRA-DW-1M-OS-16C2.5S |
16×2.5 |
37/0.29 |
0.3 |
15.7 |
560 |
FRA-DW-1M-OS-18C2.5S |
18×2.5 |
37/0.29 |
0.3 |
16.6 |
620 |
FRA-DW-1M-OS-25C2.5S |
25×2.5 |
37/0.29 |
0.3 |
19.3 |
835 |
FRA-DW-1M-OS-27C2.5S |
27×2.5 |
37/0.29 |
0.3 |
20.5 |
870 |
FRA-DW-1M-OS-48C2.5S |
48×2.5 |
37/0.29 |
0.3 |
25.7 |
1560 |
* earth cable (yellow/green) can be offered
