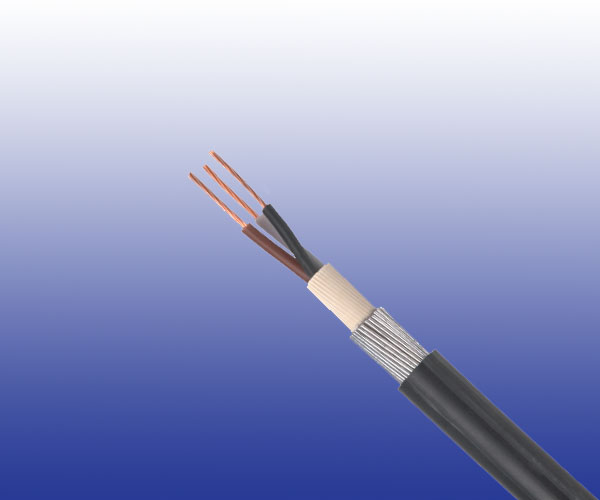

0.6/1KV Limited Fire Hazard/Fire Survival Multicore
Armoured Cables to EME-SP-14-027

Application

The cables are designed for station range installation typically in public help points (PHP), public address (PA), station announcement platforms (SAP) & CCTV camera power systems. The LSZH cables has been designed to provide superior flame retardance and circuit integrity if necessary, suitable for installation where fire, smoke emission and toxi fumes may create a potential threat.

Standards

● EME SP 14 027 (LUL version of BS 6724 for fi re retardant version and BS 6387 for fi re resisting version)
● UNE 21123

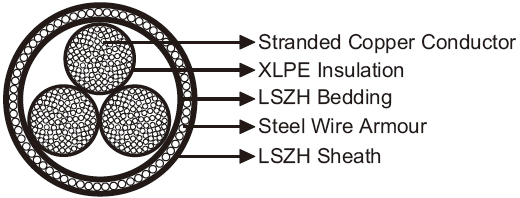

Construction

Conductors
tranded plain copper conductors to IEC 60228 class 2 or 5.

Fire Barrier Tape (optional)
Mica.

Insulation
XLPE insulation.

Bedding
LSZH bedding.

Armoured
SWA.

Outer Sheath
LSZH Sheath.

Electrical Characteristics at 20℃

Nominal Conductor Cross Section
mm²
2.5
4.0
6.0
10.0
16.0
25.0
35.0
50.0
Maximum DC Conductor Resistance
Ω/km
7.41
4.61
3.08
1.83
1.15
0.727
0.524
0.387
Voltage Rating
KV
0.45/0.75



Nominal Conductor Cross Section
mm²
70.0
95
120
150
185
240
300
Maximum DC Conductor Resistance
Ω/km
0.268
0.193
0.153
0.124
0.0991
0.0754
0.0601
Voltage Rating
KV
0.45/0.75

Mechanical and Thermal Properties

Minimum Bending Radius: 8×OD
Temperature Range: 0℃ to +90℃ (during operation); 0℃ to +70℃ (during installation)

Dimensions And Weight

Cables without fire barrier tape

Cable Code
No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²
No. & Nominal
Diameter of
Strands
No/mm
Nominal
Sheath
Thickness
mm
Nominal
Overall
Diameter
mm
Nominal
Weight
kg/km

RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G2.5

2×2.5*

7/0.67

1.4

12.2

323

RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G4

2×4.0*

7/0.85

1.4

13.3

387

RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G6

2×6.0*

7/1.04

1.4

14.4

460

RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G10

2×10.0*

7/1.35

1.5

16.1

611

RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G16

2×16.0*

7/1.70

1.5

18.7

904

RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G25

2×25.0

7/2.14

1.6

21.0

1050

RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G35

2×35.0

19/1.53

1.7

22.0

1450

RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G50

2×50.0

19/1.78

1.8

24.0

1800

RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G70

2×70.0

19/2.14

1.9

27.0

2300

RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G95

2×95.0

37/1.78

2.0

32.0

3250

RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G120

2×120.0

37/2.03

2.1

35.0

3950

RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G150

2×150.0

37/2.25

2.2

38.0

4650

RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G185

2×185.0

37/2.52

2.4

43.0

6050

RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G240

2×240.0

61/2.25

2.5

49.0

7500

RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G300

2×300.0

61/2.52

2.6

54.0

9050

RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G2.5

3×2.5*

7/0.67

1.4

12.1

335

RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G4

3×4.0*

7/0.85

1.4

13.3

430

RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G6

3×6.0*

7/1.04

1.4

14.4

523

RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G10

3×10.0*

7/1.35

1.5

17.0

811

RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G16

3×16.0*

7/1.70

1.6

19.3

1072

RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G25

3×25.0

7/2.14

1.7

24.0

1750

RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G35

3×35.0

19/1.53

1.8

27.0

2000

RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G50

3×50.0

19/1.78

1.8

28.0

2450

RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G70

3×70.0

19/2.14

1.9

32.0

3250

RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G95

3×95.0

37/1.78

2.1

36.0

4500

RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G120

3×120.0

37/2.03

2.2

40.0

5350

RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G150

3×150.0

37/2.25

2.3

44.0

6900

RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G185

3×185.0

37/2.52

2.4

49.0

8200

RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G240

3×240.0

61/2.25

2.6

56.0

10350

RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G300

3×300.0

61/2.52

2.7

62.0

12600

RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G2.5

4×2.5*

7/0.67

1.4

13.6

406

RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G4

4×4.0*

7/0.85

1.4

14.9

505

RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G6

4×6.0*

7/1.04

1.5

17.1

737

RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G10

4×10.0*

7/1.35

1.5

18.9

969

RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G16

4×16.0*

7/1.70

1.6

21.5

1303

RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G25

4×25.0

7/2.14

1.7

27.0

2100

RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G35

4×35.0

19/1.53

1.8

29.0

2450

RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G50

4×50.0

19/1.78

1.9

32.0

3100

RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G70

4×70.0

19/2.14

2.1

37.0

4400

RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G95

4×95.0

37/1.78

2.2

41.0

5650

RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G120

4×120.0

37/2.03

2.3

46.0

7300

RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G150

4×150.0

37/2.25

2.4

51.0

8700

RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G185

4×185.0

37/2.52

2.6

55.0

10450

RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G240

4×240.0

61/2.25

2.7

63.0

13250

RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G300

4×300.0

61/2.52

2.9

68.0

16100

*Circular conductors
U is changed to K if the stranding class is changed from class 2 to class 5

Cables with fire barrier tape

Cable Code
No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²
No. & Nominal
Diameter of
Strands
No/mm
Nominal
Sheath
Thickness
mm
Nominal
Overall
Diameter
mm
Nominal
Weight
kg/km

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G2.5

2×2.5

7/0.67

1.4

13.1

352

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G4

2×4.0

7/0.85

1.4

14.1

424

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G6

2×6.0

7/1.04

1.4

15.2

504

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G10

2×10.0

7/1.35

1.5

16.9

620

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G16

2×16.0

7/1.70

1.5

19.5

954

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G25

2×25.0

7/2.14

1.6

25.5

1330

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G35

2×35.0

19/1.53

1.7

29.1

1785

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G50

2×50.0

19/1.78

1.8

32.2

2165

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G70

2×70.0

19/2.14

1.9

28.8

2445

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G95

2×95.0

37/1.78

2.0

33.9

3385

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G120

2×120.0

37/2.03

2.1

37.2

4065

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G150

2×150.0

37/2.25

2.2

39.9

4745

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G185

2×185.0

37/2.52

2.4

45.0

6095

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G240

2×240.0

61/2.25

2.5

50.0

7575

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G300

2×300.0

61/2.52

2.6

55.0

9165

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G2.5

3×2.5

7/0.67

1.4

13.7

392

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G4

3×4.0

7/0.85

1.4

14.8

478

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G6

3×6.0

7/1.04

1.4

16.0

573

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G10

3×10.0

7/1.35

1.5

18.5

868

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G16

3×16.0

7/1.70

1.6

20.8

1136

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G25

3×25.0

7/2.14

1.7

27.6

1865

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G35

3×35.0

19/1.53

1.8

30.9

2235

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G50

3×50.0

19/1.78

1.8

33.9

2735

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G70

3×70.0

19/2.14

1.9

35.7

3355

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G95

3×95.0

37/1.78

2.1

38.2

4580

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G120

3×120.0

37/2.03

2.2

41.6

5505

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G150

3×150.0

37/2.25

2.3

47.0

6950

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G185

3×185.0

37/2.52

2.4

50.5

8295

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G240

3×240.0

61/2.25

2.6

57.2

10455

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G300

3×300.0

61/2.52

2.7

63.2

12660

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G2.5

4×2.5

7/0.67

1.4

14.7

454

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G4

4×4.0

7/0.85

1.4

16.0

556

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G6

4×6.0

7/1.04

1.5

18.2

783

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G10

4×10.0

7/1.35

1.5

20.0

1029

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G16

4×16.0

7/1.70

1.6

22.5

1367

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G25

4×25.0

7/2.14

1.7

29.9

2240

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G35

4×35.0

19/1.53

1.8

33.5

2705

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G50

4×50.0

19/1.78

1.9

37.1

3375

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G70

4×70.0

19/2.14

2.1

39.1

4560

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G95

4×95.0

37/1.78

2.2

43.0

5805

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G120

4×120.0

37/2.03

2.3

48.3

7430

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G150

4×150.0

37/2.25

2.4

52.4

8820

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G185

4×185.0

37/2.52

2.6

56.6

10600

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G240

4×240.0

61/2.25

2.7

64.3

13380

RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G300

4×300.0

61/2.52

2.9

70.7

16255

U is changed to K if the stranding class is changed from class 2 to class 5
