Application
These DC power cables are used for urban railways for 1500V DC traction power system with feedback current and return current, suitable for fixed installation. The cables are suitable for installations in ducts, tunnels, and cable troughs or on the cable bridges etc.
Standards
● IEC60092
● BS 7655
● IEC60502
● BS 6883 Type 657 SW4

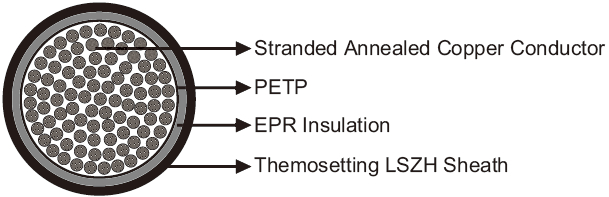

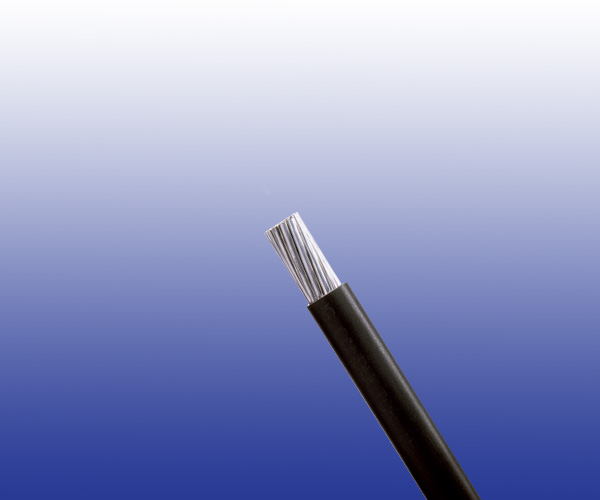

Construction
Conductors
Class 2 stranded annealed bare copper conductors to BS EN 60228: 2005 (previously BS 6360).
Core Wrapping
PETP (Polyethylene Terephthalate).
Insulation
EPR, GP8 to BS 6899 / BS 7655 RS2 / ICEA S-95-658.
Sheath
Thermosetting LSZH compound SW4 or LRS1 to BS 7655 / ICEA T-33-655, with enhanced oil resistance, and minimum tear resistance.
Electrical Characteristics at 20℃
| Nominal Conductor Cross Section |
mm² |
70 |
95 |
120 |
150 |
185 |
240 |
300 |
400 |
500 |
| Maximum DC Conductor Resistance |
Ω/km |
0.277 |
0.21 |
0.164 |
0.132 |
0.108 |
0.0817 |
0.0654 |
0.0495 |
0.0391 |
| Minimum Insulation Resistance |
MΩ.km |
539 |
472 |
433 |
390 |
355 |
313 |
280 |
245 |
221 |
| Assigned Continuous Current Rating |
A |
330 |
400 |
464 |
530 |
612 |
648 |
853 |
1010 |
1195 |
| Conductor Short Circuit Current 1s |
kA |
10.0 |
13.5 |
17.1 |
21.4 |
16.4 |
34.3 |
42.9 |
57.2 |
71.5 |
| Voltage Rating |
KV |
1.8 |
Mechanical and Thermal Properties
Minimum Bending Radius: 6×OD
Temperature Range:-40℃ to +90℃ (during operation); -25℃ to +60℃ (during installation)
Dimensions And Weight
Cable Code |
No. of cores&
Nominal
Conductor Cross
Sectional Area
No.×mm² |
No. &
Nominal
Diameter of
Strands
No/mm |
Nominal
Insulation
Thickness
mm |
Nominal
Sheath
Thickness
mm |
Nominal
Overall
Diameter
mm |
Nominal
Weight
kg/km |
Polarity |
RF6883-DZ1-U-1800P-1G70 |
1×70 |
19/2.14 |
4.0 |
2.0 |
20.3 |
1371 |
Positive |
RF6883-DZ1-U-1800P-1G95 |
1×95 |
19/2.52 |
4.0 |
2.0 |
21.7 |
1641 |
Positive |
RF6883-DZ1-U-1800P-1G120 |
1×120 |
37/2.03 |
4.0 |
2.2 |
23.6 |
1958 |
Positive |
RF6883-DZ1-U-1800P-1G150 |
1×150 |
37/2.25 |
4.0 |
2.2 |
19.3 |
2295 |
Positive |
RF6883-DZ1-U-1800P-1G185 |
1×185 |
37/2.52 |
4.0 |
2.3 |
27.3 |
2682 |
Positive |
RF6883-DZ1-U-1800P-1G240 |
1×240 |
61/2.25 |
4.0 |
2.3 |
30.7 |
3341 |
Positive |
RF6883-DZ1-U-1800P-1G300 |
1×300 |
61/2.52 |
4.0 |
2.4 |
33.3 |
4016 |
Positive |
RF6883-DZ1-U-1800P-1G400 |
1×400 |
61/2.85 |
4.0 |
2.4 |
40.3 |
5071 |
Positive |
RF6883-DZ1-U-1800P-1G500 |
1×500 |
91/2.65 |
4.0 |
2.5 |
42.3 |
6275 |
Positive |
RF6883-DZ1-U-1800P-1G630 |
1×630 |
127/2.52 |
4.0 |
2.5 |
43.4 |
6980 |
Positive |
RF6883-DZ1-U-1800P-1G800 |
1×800 |
127/2.85 |
4.0 |
2.7 |
50.6 |
8785 |
Positive |
