Application
The cables are designed for fixed power or lighting installations in rail transport.
Standards
● NF F 55-625
● UNE 21123

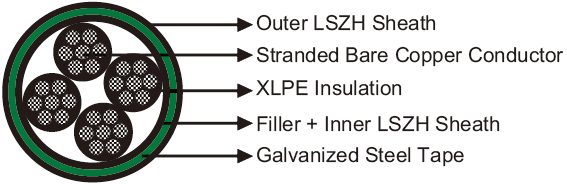

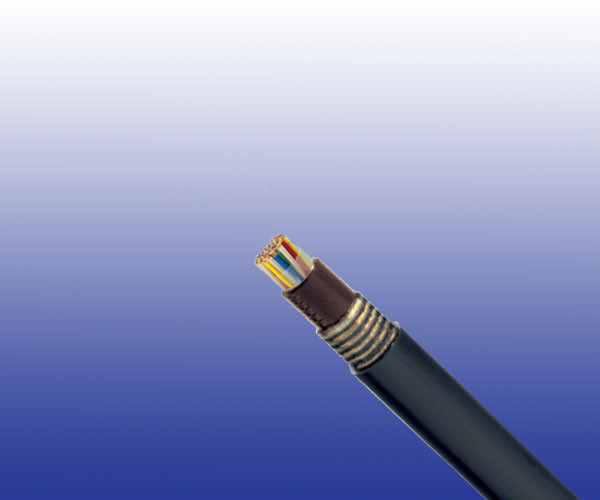

Construction
Conductors
Stranded bare copper conductor, 1.5mm² to IEC 60228 class 2.
Insulation
XLPE.
Filler & Inner Covering
LSZH.
Armour
Galvanized steel tapes.
Outer Sheath
LSZH, antitermite, coloured black.
Electrical Characteristics at 20℃
| Nominal Conductor Cross Section |
mm² |
1.5 |
| Maximum DC Conductor Resistance |
Ω/km |
12.2 |
| Minimum Insulation resistance @500VDC |
MΩ.km |
1500 |
| Voltage Rating |
KV |
0.6/1（0.45/0.75 optional） |
Mechanical and Thermal Properties
Minimum Bending Radius: 10×OD
Temperature Range: -20℃ to +60℃ (during operation); -10℃ to +60℃ (during installation)
Core Identification
Colours coding: Black, Light blue, Brown, Green/Yellow, Black
Dimensions And Weight
Cable Code |
No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm² |
No. & Nominal
Diameter of
Strands
No/mm |
Minimum
Overall
Diameter
mm |
Maximum
Overall
Diameter
mm |
Nominal
Weight
kg/km |
RF/K25-RZ1F3Z1-U(AS)-0.6/1KV-2G1.5 |
2 x 1.5 |
7/0.53 |
8.0 |
12.0 |
100 |
RF/K25-RZ1F3Z1-U(AS)-0.6/1KV-4G1.5 |
4 x 1.5 |
7/0.53 |
12.5 |
14.5 |
300 |
RF/K25-RZ1F3Z1-U(AS)-0.6/1KV-12G1.5 |
12 x 1.5 |
7/0.53 |
18.0 |
20.0 |
590 |
RF/K25-RZ1F3Z1-U(AS)-0.6/1KV-21G1.5 |
21 x 1.5 |
7/0.53 |
22.0 |
24.0 |
830 |
