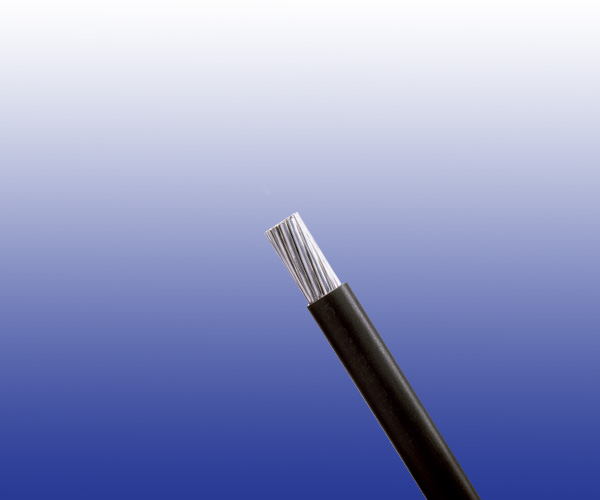

The cables are designed for fixed power or lighting installations in rail transport.
Cable Code
|
No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm² |
No. & Nominal
Diameter of
Strands
No/mm |
Nominal
Insulation
Thickness
mm |
Nominal
Overall
Diameter
mm |
Nominal
Weight
kg/km |
RF14026-ES07Z-U(AS)-450/750V-1G1.5 |
1 x 1.5 |
7/0.53 |
0.7 |
3.0 |
22 |
RF14026-ES07Z-U(AS)-450/750V-1G2.5 |
1 x 2.5 |
7/0.67 |
0.8 |
3.6 |
34 |
RF14026-ES07Z-U(AS)-450/750V-1G4 |
1 x 4.0 |
7/0.85 |
0.8 |
4.1 |
50 |
RF14026-ES07Z-U(AS)-450/750V-1G6 |
1 x 6.0 |
7/1.04 |
0.8 |
4.7 |
70 |
RF14026-ES07Z-U(AS)-450/750V-1G10 |
1 x 10.0 |
7/1.35 |
1.0 |
5.8 |
114 |
RF14026-ES07Z-U(AS)-450/750V-1G16 |
1 x 16.0 |
7/1.70 |
1.0 |
6.8 |
175 |
RF14026-ES07Z-U(AS)-450/750V-1G25 |
1 x 25.0 |
7/2.14 |
1.2 |
8.6 |
272 |
RF14026-ES07Z-U(AS)-450/750V-1G35 |
1 x 35.0 |
19/1.53 |
1.2 |
10.2 |
377 |
RF14026-ES07Z-U(AS)-450/750V-1G50 |
1 x 50.0 |
19/1.78 |
1.4 |
11.9 |
509 |
RF14026-ES07Z-U(AS)-450/750V-1G70 |
1 x 70.0 |
19/2.14 |
1.4 |
12.8 |
697 |
RF14026-ES07Z-U(AS)-450/750V-1G95 |
1 x 95.0 |
37/1.78 |
1.6 |
15.0 |
961 |
RF14026-ES07Z-U(AS)-450/750V-1G120 |
1 x 120.0 |
37/2.03 |
1.6 |
16.6 |
1203 |
RF14026-ES07Z-U(AS)-450/750V-1G150 |
1 x 150.0 |
37/2.25 |
1.8 |
18.5 |
1510 |
RF14026-ES07Z-U(AS)-450/750V-1G185 |
1 x 185.0 |
37/2.52 |
2.0 |
20.8 |
1855 |
RF14026-ES07Z-U(AS)-450/750V-1G240 |
1 x 240.0 |
61/2.25 |
2.2 |
25.4 |
2451 |
RF14026-ES07Z-U(AS)-450/750V-1G300 |
1 x 300.0 |
61/2.52 |
2.4 |
28.1 |
3031 |
RF14026-ES07Z-U(AS)-450/750V-1G400 |
1 x 400.0 |
61/2.85 |
2.6 |
31.6 |
3898 |
RF14026-ES07Z-U(AS)-450/750V-1G500 |
1 x 500.0 |
61/3.20 |
2.8 |
35.2 |
4894 |
RF14026-ES07Z-U(AS)-450/750V-1G630 |
1 x 630.0 |
127/2.52 |
2.8 |
39.1 |
6244 |
