Application

The cables are designed for permanent installation inside of rolling stock to connect fixed parts. A typical application is a communication system in a locomotive. The system uses a wire backed bus system to the TCN standard for control and instrumentation and for diagnostics. This bus system consists of the rail bus WTB (Wired Train Bus) and the road bus MVB (Multifunction Vehicle Bus) which are connected via redundant gateways.

Standards

● DIN 5510-2

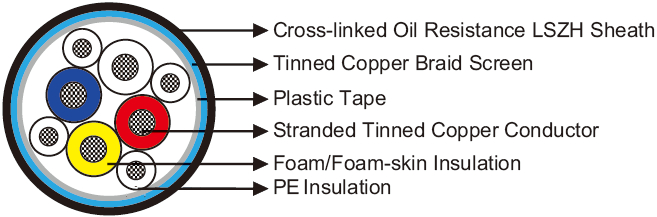

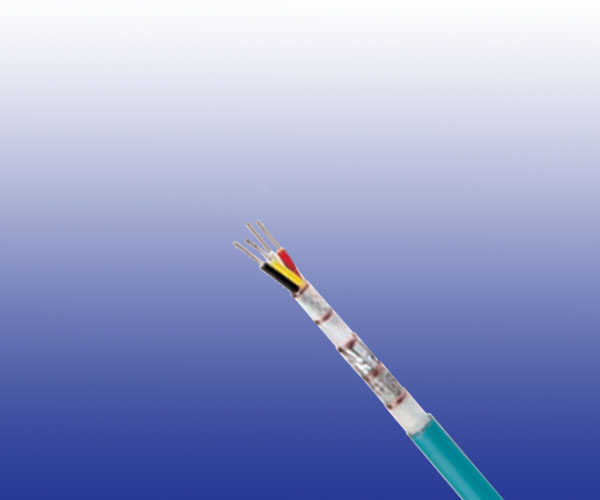

Construction

Conductors
Stranded tinned copper conductor according to IEC 60228 class 5.

Insulation
Foam skin-composite PE made of inner cellular layer and outer solid skin.

Core Wrapping
Plastic tape(s).

EMC Screen
Tinned copper braid.

Outer Sheath
Cross-linked oil resistant LSZH compound.

Electrical Characteristics at 20℃

Nominal Cross Section	mm²	0.5
Maximum Conductor Resistance	Ω/km	41
Impedance@0.75-3MHz	Ω	120+/-12
Maximum Attenuation @1.5MHz	dB/km	17
Maximum Attenuation @3MHz	dB/km	25
Maximum Transfer Impedance	mΩ/m	20
Nominal Voltage Rating	V	300

Mechanical and Thermal Properties

Minimum Bending Radius:6×OD (single); 10×OD (multiple)
Temperature Range:-40℃ to +100℃ (during operation); -20℃ +50℃ (during installation)

Dimensions And Weight

Cable Code	No. of cores& Nominal Conductor Cross Sectional Area No.×mm²	Nominal Diameter of Strands No/mm	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
RD-MVB-02YSCH-1Q0.5S+4C0.25S	1×4×0.5+4×1×0.25	19/0.18	1.2	7.9	95
