EN 50264 Standard Wall Power & Control Cable

FIREROL FRL-SW-3S/FRL-SW-6S

1.8/3 or 3.6/6 kV - sheathed single core

EN 50264 Standard Wall Power & Control Cable

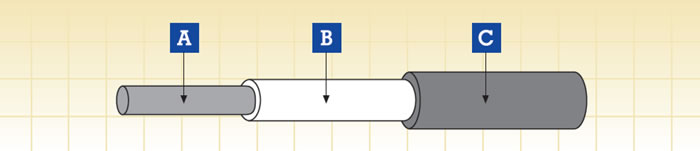

       A.Conductor                     B.Insulation                 C.Sheath

Application

-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.

-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

Construction

Conductor
Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5

Insulation
LSZH elastomeric compound as defined in EN 50264-1 (EI 101 to EI 104)

Sheath
LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104)

Electrical & Mechanical Properties

Nominal Voltage 1.8/3 kV or 3.6/6 kV
Maximum Conductor Temperature +90 deg (fixed installation)
Minimum Permissible Ambient Temperature -25/-40 deg (fixed installation)
Bending Radius 3 x Overall Diameter (D<12mm);
  4 x Overall Diameter (D>12mm)

Chemical & Environmental Properties

EN 60684-2 No fluorine
EN 50305; EN 60811-2-1 Resistance to oil & fuel
EN 50305 Resistance to ozone

Fire Performance for rolling stock application

EN 50306-2 Hazard levels HL1, HL2/HL3, HL4
DIN 5510-2 Protection level 1/2/3/4
BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101 FO

Fire Performance in general

EN 50265-2-1; IEC 60332-1; BS 4066-1 Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3C; Fire propagation of bunched wires and cables;
VDE 0472 Teil 804; BS 4066-3; NFC 32070
EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 Smoke density
EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 Halogen Free
EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 Corrosivity of gases (Acidity & Conductivity)
EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 Toxicity index
NFF 16101; NFF 63808; BS6853 Smoke index

FRL-SW-3S 1.8/3 kV

NOMINAL CROSS-SECTIONAL AREA CONDUCTOR DIAMETER (a) MIN. MEAN THICKNESS OF INSULATION MIN. MEAN THICKNESS OF SHEATH OVERALL DIAMETER WEIGHT CONDUCTOR RESISTANCE AT INSULATION RESISTANCE AT INSULATION RESISTANCE AT
  min max   max min min

mm2

mm

mm

mm

mm

mm

kg/km

Ω/km

MΩ·km

MΩ·km

1.5

1.5

1.3

1.4

6.7

7.8

80

13.7

960

9.6

2.5

1.95

1.3

1.4

7.1

8.3

100

8.21

850

8.5

4.0

2.5

1.3

1.4

7.6

8.9

120

5.09

750

7.5

6.0

3.0

1.3

1.4

8.1

9.5

140

3.39

670

6.7

10

3.9

2.2

1.4

10.6

12.4

250

1.95

550

5.5

16

5.0

2.2

1.4

11.7

13.6

310

1.24

450

4.5

25

6.4

2.2

1.4

13.0

15.2

410

0.795

390

3.9

35

7.7

2.2

1.4

14.2

16.6

520

0.565

350

3.5

50

9.2

2.2

1.4

15.6

18.3

660

0.393

300

3.0

70

11.0

2.2

1.5

17.5

20.5

880

0.277

260

2.6

95

12.5

2.4

1.6

19.6

22.3

1130

0.210

250

2.5

120

14.2

2.4

1.6

21.1

24.6

1370

0.164

220

2.2

150

15.8

2.4

1.7

22.7

26.6

1690

0.132

210

2.1

185

17.5

2.4

1.7

24.0

28.1

2000

0.108

200

2.0

240

20.1

2.4

1.8

27.0

31.6

2620

0.0817

180

1.8

300

22.5

2.4

1.9

29.4

34.4

3140

0.0654

170

1.7

400

25.8

2.6

2.0

32.7

38.3

4140

0.0495

150

1.5

FRL-SW-6S 3/6 kV

NO
MINAL CROSS-SECT
IONAL AREA

COND
UCTOR DIAMETER (a)

MIN.
MEAN THICKNESS OF INSUL
ATION

MIN.
MEAN THICK
NESS
OF
SHEATH

OVERALL DIAM
ETER

WEIGHT

CONDU
CTOR RESIST
ANCEAT
20°C

INSULATION RESISTANCE AT 20°C

INSULATION RESISTANCE AT 90°C

min

max

max

min

min

mm2

mm

mm

mm

mm

mm

kg/km

Ω/km

MΩ·km

MΩ·km

2.5

1.95

3.0

1.4

10.5

12.3

170

8.21

1300

13

4.0

2.5

3.0

1.4

11.0

12.9

190

5.09

1150

11.5

6.0

3.0

3.0

1.4

11.5

13.4

230

3.39

1050

10.5

10

3.9

3.0

1.4

12.3

14.4

300

1.95

850

8.5

16

5.0

3.0

1.4

13.3

15.6

360

1.24

710

7.1

25

6.4

3.0

1.4

14.7

17.2

450

0.795

630

6.3

35

7.7

3.0

1.4

15.9

18.6

560

0.565

550

5.5

50

9.2

3.0

1.5

17.5

20.5

720

0.393

500

5.0

70

11.0

3.0

1.5

19.2

22.4

930

0.277

430

4.3

95

12.5

3.0

1.6

20.8

24.3

1160

0.210

400

4.0

120

14.2

3.1

1.7

22.7

26.6

1430

0.164

360

3.6

150

15.8

3.1

1.7

24.2

28.4

1740

0.132

340

3.4

185

17.5

3.2

1.8

26.2

30.7

2080

0.108

330

3.3

240

20.1

3.4

1.9

29.2

34.2

2730

0.0817

300

3.0

300

22.5

3.4

1.9

31.5

36.9

3230

0.0654

250

2.5

400

25.8

3.4

2.0

34.8

40.7

4210

0.0495

230

2.3

(a)= for information, indicative only
