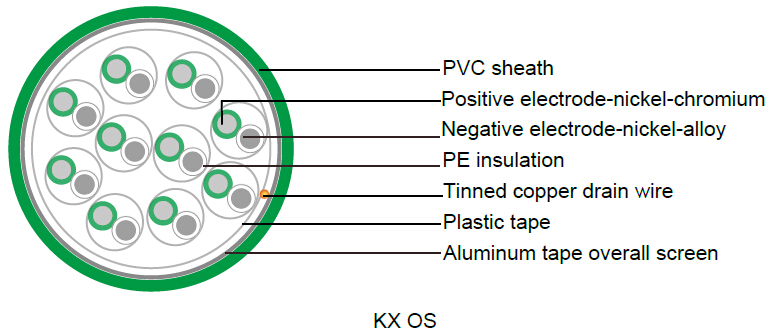

Single pair/multipair Overall Screen
Application
These cables are used in thermocouple circuits, petrochemical plants, utilities and industrial
plants.
Specification
Conductor: Solid
Type applicable: KX, EX, JX, TX, NX, KCA, KCB, RCA, RCB, SCA, RCB, BC
Insulation: PVC, PE, XLPE or LSZH thermoplastic material
Wrapping: At least 1 layer of plastic tape
Overall screen: 24 μm aluminium / PETP tape over 7-stranded tinned copper drain wire, 0.5
mm²
Outer sheath: PVC or LSZH thermoplastic material
Color code: According to IEC 60584-3
Flame retardancy: IEC 60332-1
Flame propagation: IEC 60332 cat. C
Temperature range: -30°C up to 70°C during operation. -5°C up to 50°C during installation.
0.5 mm²
Conductor Size (mm²) |
No. of Pairs |
Insulation Thickness (mm) |
Outer Sheath Thickness (mm) |
Nominal O.D. (mm) |
Weight* (kg/km) |
0.5 |
1 |
0.4 |
1.0 |
5.6 |
42 |
0.5 |
2 |
0.4 |
1.0 |
7.9 |
68 |
0.5 |
4 |
0.4 |
1.0 |
9.0 |
106 |
0.5 |
6 |
0.4 |
1.0 |
10.6 |
145 |
0.5 |
8 |
0.4 |
1.0 |
11.3 |
181 |
0.5 |
10 |
0.4 |
1.2 |
13.1 |
235 |
0.5 |
12 |
0.4 |
1.2 |
13.7 |
269 |
0.5 |
16 |
0.4 |
1.2 |
15.4 |
341 |
0.5 |
20 |
0.4 |
1.2 |
16.8 |
412 |
0.5 |
24 |
0.4 |
1.4 |
18.6 |
508 |
0.8 mm²
Conductor Size (mm²) |
No. of Pairs |
Insulation Thickness (mm) |
Outer Sheath Thickness (mm) |
Nominal O.D. (mm) |
Weight* (kg/km) |
0.8 |
1 |
0.4 |
1.0 |
6.0 |
51 |
0.8 |
2 |
0.4 |
1.0 |
8.6 |
86 |
0.8 |
4 |
0.4 |
1.0 |
9.9 |
139 |
0.8 |
6 |
0.4 |
1.0 |
11.7 |
194 |
0.8 |
8 |
0.4 |
1.2 |
12.8 |
257 |
0.8 |
10 |
0.4 |
1.2 |
14.4 |
316 |
0.8 |
12 |
0.4 |
1.2 |
15.1 |
365 |
0.8 |
16 |
0.4 |
1.2 |
17.0 |
468 |
0.8 |
20 |
0.4 |
1.4 |
19.1 |
587 |
0.8 |
24 |
0.4 |
1.4 |
20.6 |
697 |
1.0 mm²
Conductor Size (mm²) |
No. of Pairs |
Insulation Thickness (mm) |
Outer Sheath Thickness (mm) |
Nominal O.D. (mm) |
Weight* (kg/km) |
1.0 |
1 |
0.4 |
1.0 |
6.3 |
57 |
1.0 |
2 |
0.4 |
1.0 |
9.0 |
98 |
1.0 |
4 |
0.4 |
1.0 |
10.3 |
161 |
1.0 |
6 |
0.4 |
1.2 |
12.6 |
238 |
1.0 |
8 |
0.4 |
1.2 |
13.4 |
300 |
1.0 |
10 |
0.4 |
1.2 |
15.2 |
369 |
1.0 |
12 |
0.4 |
1.2 |
15.8 |
428 |
1.0 |
16 |
0.4 |
1.4 |
18.3 |
568 |
1.0 |
20 |
0.4 |
1.4 |
20.0 |
690 |
1.0 |
24 |
0.4 |
1.4 |
21.6 |
821 |
1.3 mm²
Conductor Size (mm²) |
No. of Pairs |
Insulation Thickness (mm) |
Outer Sheath Thickness (mm) |
Nominal O.D. (mm) |
Weight* (kg/km) |
1.3 |
1 |
0.4 |
1.0 |
6.6 |
65 |
1.3 |
2 |
0.4 |
1.0 |
10.2 |
115 |
1.3 |
4 |
0.4 |
1.0 |
11.8 |
193 |
1.3 |
6 |
0.4 |
1.2 |
14.5 |
286 |
1.3 |
8 |
0.4 |
1.2 |
15.4 |
363 |
1.3 |
10 |
0.4 |
1.2 |
17.5 |
448 |
1.3 |
12 |
0.4 |
1.2 |
18.3 |
521 |
1.3 |
16 |
0.4 |
1.4 |
21.1 |
692 |
1.3 |
20 |
0.4 |
1.4 |
23.2 |
843 |
1.3 |
24 |
0.4 |
1.6 |
25.6 |
1005 |
1.5 mm²
Conductor Size (mm²) |
No. of Pairs |
Insulation Thickness (mm) |
Outer Sheath Thickness (mm) |
Nominal O.D. (mm) |
Weight* (kg/km) |
1.5 |
1 |
0.5 |
1.0 |
7.2 |
75 |
1.5 |
2 |
0.5 |
1.0 |
11.3 |
134 |
1.5 |
4 |
0.5 |
1.2 |
13.5 |
238 |
1.5 |
6 |
0.5 |
1.2 |
16.2 |
336 |
1.5 |
8 |
0.5 |
1.2 |
17.2 |
427 |
1.5 |
10 |
0.5 |
1.4 |
20.0 |
546 |
1.5 |
12 |
0.5 |
1.4 |
20.9 |
634 |
1.5 |
16 |
0.5 |
1.4 |
23.6 |
817 |
1.5 |
20 |
0.5 |
1.6 |
26.5 |
1021 |
1.5 |
24 |
0.5 |
1.6 |
28.7 |
1216 |
*The number here is just approx. weight. It changes according to the insulation material and the conductor used in different type of extension cable and compensating cable.
|
