Flat Single Pair Silica Insulated



Application

These cables are used with thermocouples for temperature measurements.

Specification

Conductor: Solid. Material is according to thermocouple type.

Insulation: Silica

Outer sheath: Silica

Construction: Flat

Color code: According to IEC 60584-3

K Type

AWG(mm) Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
24 (0.51) silica silica 870 2.2 x 3.4 16.7
20 (0.81) silica silica 980 2.7 x 3.9 20.0
14 (1.63) silica silica 1090 3.6 x 5.0 53.4

J Type

AWG(mm) Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
24 (0.51) silica silica 370 2.2 x 3.4 16.7
20 (0.81) silica silica 480 2.7 x 3.9 20.0
14 (1.63) silica silica 590 3.6 x 5.0 53.4

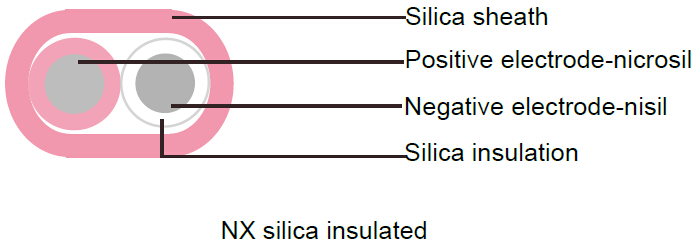

N Type

AWG(mm) Insulation Material Sheath Material Max. Temp. (°C) Nominal O.D. (mm) Weight (kg/km)
24 (0.51) silica silica 980 2.2 x 3.4 10.0
20 (0.81) silica silica 980 2.7 x 3.9 11.7
14 (1.63) silica silica 1090 3.6 x 5.0 26.7
