400Hz Airport Cables 7-core With Concentric Copper Wire Shield & Control Wire

00Hz Airport Cables 7-core With Concentric Copper Wire Shield & Control Wire

Applications

These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.

Standards

VDE 0295

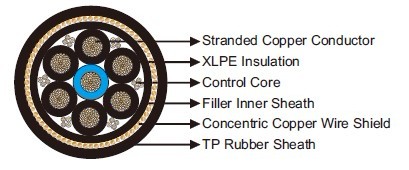

Construction

Conductor: Stranded bare copper conductor, Class 6 to VDE 0295/IEC 60228.
Insulation: XLPE.
Control Core: 1mm² stranded copper conductor with PVC insulation.
Inner Sheath: Filler.
Shield: Concentric copper conductor (25mm²).
Outer Sheath: TP rubber.

Technical Data

Rated Voltage Uo/U (Um) 600/1000V
Operating Temperatures -55℃~+85℃
Minimum Bending Radius static: 8×OD; dynamic: 12×OD
Flame Retardant Yes

Dimensions and Weight

Construction Nominal Diameter
of Power Core
Nominal Diameter
of Control Core
Nominal Diameter
Under Shield
Nominal Overall
Diameter
Nominal Weight
No. ×mm² mm mm mm mm kg/km
7×35+6×(4×1) 10.5 2.1 40.8 42.8 3000
