>Airport Pavement Cable 600V

Airport Pavement Cable 600V

Applications

These cables are used as airport pavement cable for secondary electrical circuits.

Standards

FAA 150/5345-30

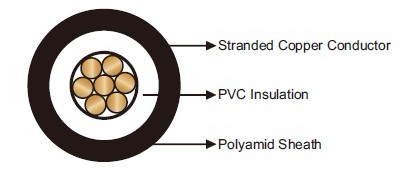

Construction

Conductor: Stranded copper conductor.
Insulation: PVC.
Sheath: Polyamid (nylon).

Technical Data

Rated Voltage Uo/U (Um)

600V

Operating Temperatures

-45℃~+85℃

Minimum Bending Radius

5×OD

Abrasion Resistant

Yes

UV Resistant

Yes

Oil Resistant

Yes

Dimensions and Weight

Construction

Nominal Insulation
Thickness

Nominal Sheath
Thickness

Nominal Overall
Diameter

Nominal Weight

No. ×mm²/AWG

mm

mm

mm

kg/km

1×4 mm²

0.6

0.15

4.1

48

1×12

0.6

0.15

3.8

41

1×10

0.8

0.15

4.9

66
