Airfield Lighting Cables FL2XCYRY

FL2XCYRY Airport Lighting Cables

Applications

These cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.

Standards

ENV 50213
IEC 60502-2

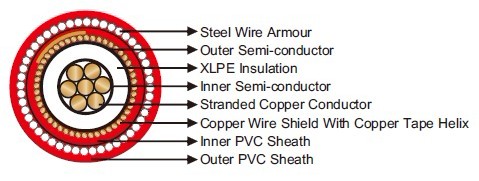

Construction

Conductor: Stranded bare copper conductor.
Inner Semi-Conductor: Extruded semi-conducting compound.
Insulation: XLPE.
Outer Semi-Conductor: Extruded semi-conducting compound.
Shield: Concentric layer of bare copper wires, counter helix of a copper tape.
Inner Sheath: PVC.
Armour: Steel wire armour.
Outer Sheath: PVC.

Technical Data

Rated Voltage Uo/U (Um)

6/10kV

Maximum Conductor Temperature

90℃

Short Circuit Temperature

250℃

Operating Temperatures

-40℃~+90℃

Minimum Bending Radius

15×OD

Flame Retardant

Yes

Impacted Resistant

Yes

Weather Resistant

Yes

Oil Resistant

Yes

Dimensions and Weight

Construction

Nominal Insulation
Thickness

Nominal Shield
Cross Section

Nominal Sheath
Thickness

Nominal Overall
Diameter

Nominal Weight

No. ×mm²

mm

mm²

mm

mm

kg/km

1×6

3.5

6

1.4

20.5

710
