Secondary Circuit Cables FLGG

FLGG Secondary Circuit Cables

Applications

These cables are used as airfield lighting cable for secondary electrical circuits.

Standards

IEC 60502-1

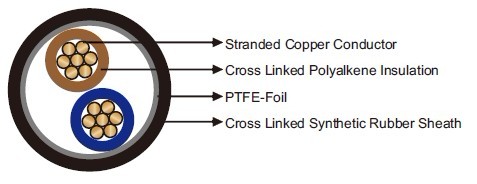

Construction

Conductor: Stranded tinned copper conductor.
Insulation: Cross linked polyalkene.
Separator: PTFE-Foil.
Outer Sheath: Cross linked synthetic rubber compound

Technical Data

Rated Voltage Uo/U (Um)

500V

Maximum Conductor Temperature

90℃

Short Circuit Temperature

250℃

Operating Temperatures

-20℃~+90℃

Minimum Bending Radius

5×OD

Halogen Free

Yes

No Toxicity & Corrosivity

Yes

Low Smoke

Yes

Flame Retardant

Yes

Dimensions and Weight

Construction

Nominal Sheath
Thickness

Nominal Sheath
Thickness

Maximum Overall
Diameter

Nominal Weight

No. ×mm²

mm

mm

mm

kg/km

2×4

0.5

1.1

9.8

167
