Airport Lighting Cables RHZ1

RHZ1 Airport Lighting Cables

Applications

These cables are used as airfield lighting equipment primary cables for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.

Standards

UNE 21161-93 (Spain)

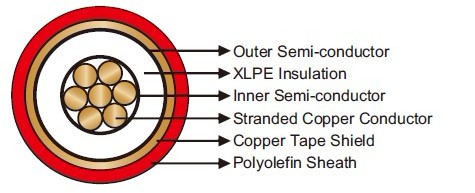

Construction

Conductor: Stranded copper conductor.
Inner Semi-Conductor: Extruded semi-conducting compound.
Insulation: XLPE.
Outer Semi-Conductor: Extruded semi-conducting compound.
Shield: Copper tape shield.
Outer Sheath: Polyolefin.

Technical Data

Rated Voltage Uo/U (Um)

6/10kV

Maximum Conductor Temperature

90℃

Short Circuit Temperature

250℃

Operating Temperatures

-20℃~+90℃

Minimum Bending Radius

18×OD

Halogen Free

Yes

No Corrosive & Toxic Gases

Yes

Low Smoke

Yes

Flame Retardant

Yes

Impacted Resistant

Yes

Weather Resistant

Yes

Oil Resistant

Yes

Dimensions and Weight

Construction

Nominal Insulation
Thickness

Nominal Sheath
Thickness

Nominal Overall
Diameter

Nominal Weight

No. ×mm²

mm

mm

mm

kg/km

1×6

3.5

2.0

18.0

400
