 Automotive Cable
AVS
Application
This PVC insulated single-core cable is used for low voltage circuits in automobiles, vehicles and motorcycles.

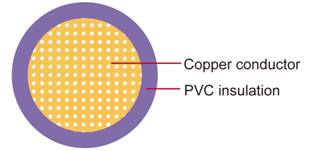

Construction:
Conductor:
Cu-ETP1 bare according to D 609-90
Insulation:
PVC
Standard Compliance:
JASO D 611-94
Technical Parameters:
Operating temperature:–40 °C to +85 °C
Intermittent temperature:120°C (120h)
|
Conductor |
Insulation |
Cable |
Nominal
Cross-
section
|
No. and Dia. of Wires. |
Diameter
Max. |
Electrical resistance at 20℃
Max. |
thickness wall
Nom. |
Overall
Diameter
min.
|
Overall
Diameter
max.
|
Weight approx. |
mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
mm |
Kg/km |
1 x0.3 |
7/0.26 |
0.80 |
50.20 |
0.50 |
1.80 |
1.9 |
6 |
1 x0.5 |
7/0.32 |
1.00 |
32.70 |
0.60 |
2.10 |
2.40 |
7 |
1 x0.85 |
11/0.32 |
1.20 |
20.80 |
0.60 |
2.30 |
2.60 |
10 |
1 x1.25 |
16/0.32 |
1.50 |
14.30 |
0.60 |
2.60 |
2.90 |
15 |
1 x2 |
26/0.32 |
1.90 |
8.81 |
0.60 |
3.00 |
3.40 |
22 |
1 x3 |
41/0.32 |
2.40 |
5.59 |
0.70 |
3.50 |
3.90 |
42 |
1 x5 |
65/0.32 |
3.00 |
3.52 |
0.80 |
4.50 |
4.90 |
61 |
1 x0.3f |
15/0.18 |
0.80 |
48.90 |
0.50 |
1.80 |
1.90 |
6 |
1 x0.5f |
20/0.18 |
1.00 |
36.70 |
0.50 |
2.00 |
2.10 |
8 |
1 x0.75f |
30/0.18 |
1.20 |
24.40 |
0.50 |
2.20 |
2.30 |
11 |
1 x1.25f |
50/0.18 |
1.50 |
14.70 |
0.50 |
2.50 |
2.60 |
17 |
1 x2f |
37/0.26 |
1.80 |
9.50 |
0.50 |
2.90 |
3.10 |
24 |
The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter.
Note: Other configurations, sizes, colors and length not specified herein areavailable upon request.
|
