Japanese Standard Automotive Cable
AVSSX/AESSX
Applications
This XLPVC (XLPE) insulated single-core cable is used in electric system for automobile.

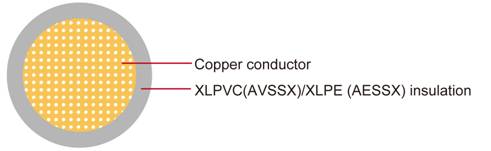

Construction
| Conductor | Cu-ETP1 bare or tinned according to JIS C3102 |
| Insulation | XLPVC (AVSSX) |
| XLPE (AESSX) | |
| Standard Compliance | JASO D 608-92 |
Technical Parameters
| Operating temperature | –40 °C to +105 °C (AVSSX) |
| Operating temperature | –40 °C to +120 °C (AESSX) |
| Conductor | Insulation | Cable | |||||
| Nominal Cross-section | No. and Dia. of Wires | Diameter max. | Electrical Resistance at 20°C max. | Thickness Wall nom. | Overall Diameter min. | Overall Diameter max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
| AVSSX | |||||||
| 1 x0.30 | 7/0.26 | 0.80 | 50.20 | 0.24 | 1.40 | 1.50 | 5 |
| 1 x0.50 | 7/0.32 | 1.00 | 32.70 | 0.24 | 1.60 | 1.70 | 7 |
| 1 x0.85 | 19/0.24 | 1.20 | 21.70 | 0.24 | 1.80 | 1.90 | 10 |
| 1 x0.85 | 7/0.40 | 1.10 | 20.80 | 0.24 | 1.80 | 1.90 | 10 |
| 1 x1.25 | 19/0.29 | 1.50 | 14.90 | 0.24 | 2.10 | 2.20 | 15 |
| 1 x2.00 | 19/0.37 | 1.90 | 9.00 | 0.32 | 2.70 | 2.80 | 23 |
| 1 x0.3f | 19/0.16 | 0.80 | 48.80 | 0.24 | 1.40 | 1.50 | 2 |
| 1 x0.5f | 19/0.19 | 1.00 | 34.60 | 0.30 | 1.60 | 1.70 | 7 |
| 1 x0.75f | 19/0.23 | 1.20 | 23.60 | 0.30 | 1.80 | 1.90 | 10 |
| 1 x1.25f | 37/0.21 | 1.50 | 14.60 | 0.30 | 2.10 | 2.20 | 14 |
| 1 x2f | 37/0.26 | 1.80 | 9.50 | 0.40 | 2.60 | 2.70 | 22 |
| AESSX | |||||||
| 1 x0.3f | 19/0.16 | 0.80 | 48.80 | 0.30 | 1.40 | 1.50 | 5 |
| 1 x0.5f | 19/0.19 | 1.00 | 64.60 | 0.30 | 1.60 | 1.70 | 7 |
| 1 x0.75f | 19/0.23 | 1.20 | 23.60 | 0.30 | 1.80 | 1.90 | 10 |
| 1 x1.25f | 37/0.21 | 1.50 | 14.60 | 0.30 | 2.10 | 2.20 | 14 |
| 1 x2f | 37/0.26 | 1.80 | 9.50 | 0.40 | 2.60 | 2.70 | 22 |
The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter.
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
