Germany Standard Automotive Cable

FLR9YBC31Y

Applications

This PP insulated, TPES sheathed screened cable is used for car communication cable.

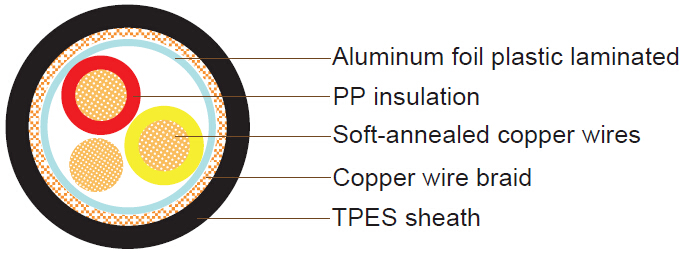

Construction

Conductor	Electrolyte copper Cu-ETP1 according to DIN EN 13602 bare or tinned
Insulation	PP
Shielding	Aluminum foil plastic laminated, and copper wire braid, The coverage of approximately 60% is reflected in very efficient shield attenuation.
	Optical coverage of approximately 85% is reflected in very efficient shield attenuation.
Sheath	TPES
Standard Compliance	ISO6722 & ISO14572 Type C

Technical Parameters

Operating temperature: –40 °C to +125 °C

Conductor			Insulation		Cable
Nominal Cross-section	No. and Dia. of Wires	Diameter max.	Thickness Wall nom.	Diameter of Core	Sheath Thickness	Overall Diameter min.	Overall Diameter max.	Weight approx.
mm2	No./mm	mm	mm	mm	mm	mm	mm	kg/km
2*0.5+0.5	16/0.2	0.94	0.3	1.6	0.5	5.4	7.4	48

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
