Germany Standard Automotive Cable
FLRYB11Y
Applications
This PVC insulated ,PUR sheathed low tension multi-cores cable is used for automobiles; it has excellent abrasion resistance and better resistance to bending fatigue.

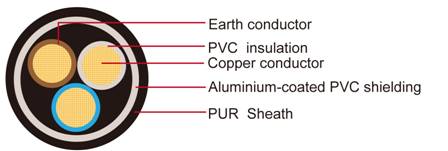

Construction
| Conductor | Cu-ETP1 bare according to DIN EN 13602 |
| Insulation | PVC |
| Cover for the earth conductor | Conductive PVC |
| Shielding | Aluminium-coated PVC foil |
| Sheath | polyurethane (PUR) |
| Standard Compliance | ISO 6722 Class B |
Technical Parameters
Operating temperature: –40 °C to +105 °C| Conductor | Insulation | Cable | |||||||
| Nominal Cross-section | No. and Dia. of Wires | Diameter max. | Electrical Resistance at 20 °C max. | Thickness Wall nom. | Diameter of Core | Sheath Thickness | Overall Diameter min. | Overall Diameter max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | mm | kg/km |
| 1x0.35+(0.35) | 7/0.26 | 0.80 | 52.00 | 0.25 | 1.25 | 0.60 | 3.90 | 4.30 | 21 |
| 2x0.35+(0.35) | 7/0.26 | 0.80 | 52.00 | 0.25 | 1.25 | 0.60 | 4.10 | 4.50 | 24 |
| 3x0.35+(0.35) | 7/0.26 | 0.80 | 52.00 | 0.25 | 1.25 | 0.60 | 4.40 | 4.80 | 30 |
| 4x0.35+(0.35) | 7/0.26 | 0.80 | 52.00 | 0.25 | 1.25 | 0.60 | 4.80 | 5.20 | 39 |
| 5x0.35+(0.35) | 7/0.26 | 0.80 | 52.00 | 0.25 | 1.25 | 0.60 | 5.40 | 5.80 | 46 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
