American Standard Automotive Cable
HDT
Applications
This PVC insulated single-core cable is used for automobiles, motorcycles and other motor vehicles.

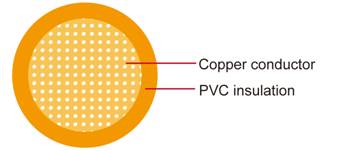

Construction
| Conductor | Soft-annealed copper according to ASTM B3 |
| Insulation | PVC |
| Standard Compliance | SAE J1128 |
Technical Parameters
Operating temperature: –40 °C to +85 °C| Conductor | Insulation | Cable | ||||
| Size | Nominal Cross-section | No. and Dia. of Wires | Diameter max. | Thickness Wallnom. | Overall Diameter max. | Weight approx. |
| AWG | mm2 | No./mm | mm | mm | mm | kg/km |
| 20 | 1 x 0.50 | 7/0.31 | 1.00 | 0.91 | 2.80 | 14 |
| 18 | 1 x 0.80 | 16/0.26 | 1.50 | 0.94 | 3.00 | 20 |
| 16 | 1 x 1.00 | 19/0.29 | 1.50 | 1.02 | 3.50 | 25 |
| 14 | 1 x 2.00 | 19/0.36 | 1.80 | 1.04 | 3.90 | 33 |
| 12 | 1 x 3.00 | 19/0.45 | 2.30 | 1.17 | 4.60 | 49 |
| 10 | 1 x 5.00 | 19/0.57 | 3.00 | 1.17 | 5.30 | 71 |
| 8 | 1 x 8.00 | 49/0.45 | 3.70 | 1.40 | 6.50 | 98 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
