American Standard Automotive Cable
SGT
Applications
This PVC insulated single-core cable is used for automotive starters or battery grounds.

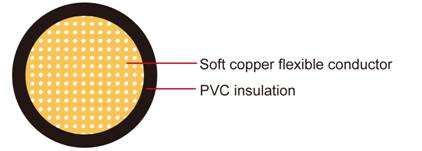

Construction
| Conductor | Soft copper flexible conductor |
| Insulation | PVC |
| Standard Compliance | SAE J1127 |
Technical Parameters
Operating temperature: –40 °C to +80 °C| Conductor | Insulation | Cable | ||||
| Size | Nominal Cross-section | No. and Dia. of Wires | Diameter max. | Thickness Wallnom. | Overall Diameter max. | Weight approx. |
| AWG | mm2 | No./mm | mm | mm | mm | kg/km |
| 6 | 1 x 13.48 | 266/0.26 | 4.12 | 1.52 | 6.58 | 152 |
| 4 | 1 x 21.28 | 420/0.26 | 6.72 | 1.65 | 9.40 | 243 |
| 2 | 1 x 33.70 | 665/0.26 | 8.58 | 1.65 | 11.26 | 368 |
| 1 | 1 x 42.36 | 836/0.26 | 9.77 | 1.65 | 12.45 | 454 |
| 1/0 | 1 x 53.91 | 1064/0.26 | 11.10 | 1.65 | 13.78 | 568 |
| 2/0 | 1 x 67.04 | 1323/0.26 | 12.47 | 1.65 | 15.15 | 697 |
| 3/0 | 1 x 84.42 | 1666/0.26 | 14.10 | 1.98 | 17.30 | 886 |
| 4/0 | 1 x 106.76 | 2107/0.26 | 15.97 | 1.98 | 19.17 | 1105 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
