Multipair Overall Foil & Braid Screened Cables-Belden Equivalent 8307
Application
These cables have pairs laid up in a foil/braid screen. These cables are suitable for EIA RS-232 and CAD/CAM applications, used as computer cables.

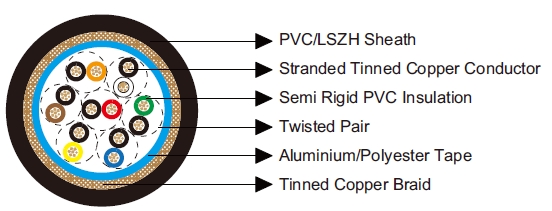

Construction
Conductor: Tinned copper wire.
Insulation: Semi Rigid PVC.
Overall Screen1: Aluminium/Polyester Tape.
Overall Screen2: Tinned copper braid, 65% coverage.
Sheath: PVC/LSZH.
Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange.
Electrical & Mechanical Characteristics
AWG |
|
22 |
Conductor Construction |
|
7x0.254 |
UL Style |
|
2464 |
Maximum Conductor Resistance |
Ω/km |
54.8 |
Voltage Rating |
V |
300 |
Nominal Capacitance Conductor to Conductor |
pF/m |
115 |
Nominal Capacitance Conductor to Screen |
pF/m |
207 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-30~80 |
Dimensions
Ordering Code |
No. of pairs |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE8307V |
7 |
0.25 |
0.81 |
8.8 |
BE8307H |
7 |
0.25 |
0.81 |
8.8 |
