Multicore Overall Screened Cables-Belden Equivalent 8770
Application

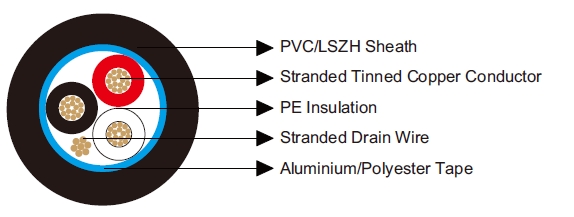

These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.
Construction
Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen: Aluminium/Polyester Tape.
Drain Wire: Tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Black, Red, Clear.
Electrical & Mechanical Characteristics
AWG |
|
18 |
Conductor Construction |
|
16x0.25 |
UL Style |
|
2093 |
Maximum Conductor Resistance |
Ω/km |
23 |
Voltage Rating |
V |
300 |
Nominal Capacitance Conductor to Conductor |
pF/m |
79 |
Nominal Capacitance Conductor to Screen |
pF/m |
157 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-20~60 |
Dimensions
Ordering Code |
No. of Cores |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE8770V |
3 |
0.46 |
0.84 |
6.3 |
BE8770H |
3 |
0.46 |
0.84 |
6.3 |
