Multicore Overall Screened Cables-Belden Equivalent 9418
Application
These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.

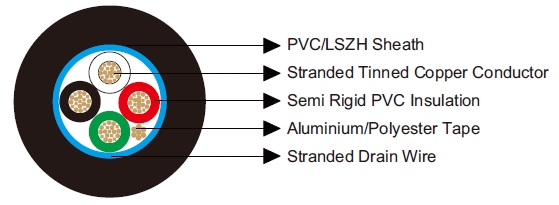

Construction
Conductor: Tinned copper wire.
Insulation: Semi Rigid PVC.
Overall Screen: Aluminium/Polyester Tape.
Drain Wire: Stranded Tinned Copper.
Sheath: PVC/LSZH.
Insulation Colour: Red, Green, Black, White.
Electrical & Mechanical Characteristics
AWG |
|
18 |
Conductor Construction |
|
19x0.254 |
UL Style |
|
2464 |
Maximum Conductor Resistance |
Ω/km |
23 |
Voltage Rating |
V |
300 |
Nominal Capacitance Conductor to Conductor |
pF/m |
131 |
Nominal Capacitance Conductor to Screen |
pF/m |
236 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-20~80 |
Dimensions
Ordering Code |
No. of Cores |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE9418V |
4 |
0.28 |
0.89 |
6.2 |
BE9418H |
4 |
0.28 |
0.89 |
6.2 |
