Multicore Overall Screened Cables-Belden Equivalent 9541

Application

These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.

Construction

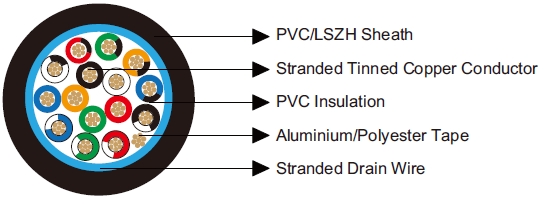

Conductor: Tinned copper wire.

Insulation: PVC.

Overall Screen: Aluminium/Polyester Tape.

Drain Wire: Stranded Tinned Copper, 7x0.20.

Sheath: PVC/LSZH.

Insulation Colour: Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/Black, Orange/Black, Blue/Black, Black/White, Red/White, Green/White, Blue/White.

Electrical & Mechanical Characteristics

AWG



24

Conductor Construction



7x0.20

UL Style



2464

Maximum Conductor Resistance

Ω/km

85

Voltage Rating

V

300

Nominal Capacitance Conductor to Conductor

pF/m

98

Nominal Capacitance Conductor to Screen

pF/m

180

Bending Radius



10xOverall Diameter

Operating Temperature

-30~80

Dimensions

Ordering Code

No. of Cores

Insulation Thickness

Sheath Thickness

Overall Diameter





mm

mm

mm

BE9541V

15

0.25

0.81

7.2

BE9541H

15

0.25

0.81

7.2
