Multicore Overall Screened Cables-Belden Equivalent 9543

Application

These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.

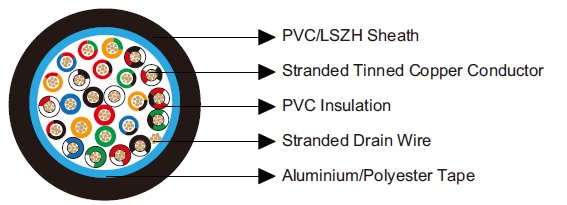

Construction

Conductor: Tinned copper wire.

Insulation: PVC.

Overall Screen: Aluminium/Polyester Tape.

Drain Wire: Stranded Tinned Copper, 7x0.20.

Sheath: PVC/LSZH.

Insulation Colour: Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/Black, Orange/Black, Blue/Black, Black/White, Red/White, Green/White, Blue/White, Black/Red, White/Red, Orange/Red, Blue/Red, Red/Green, Orange/Green, Black/White/Red, White/Black/Red, Red/Black/White, Green/Black/White.

Electrical & Mechanical Characteristics

AWG



24

Conductor Construction



7x0.20

UL Style



2464

Maximum Conductor Resistance

Ω/km

85

Voltage Rating

V

300

Nominal Capacitance Conductor to Conductor

pF/m

98

Nominal Capacitance Conductor to Screen

pF/m

180

Bending Radius



10xOverall Diameter

Operating Temperature

-30~80

Dimensions

Ordering Code

No. of Cores

Insulation Thickness

Sheath Thickness

Overall Diameter





mm

mm

mm

BE9543V

25

0.25

0.81

8.6

BE9543H

25

0.25

0.81

8.6
