Multipair Individually Screened Cables-Belden Equivalent 9738

Application

These cables have individually screened pairs laid up. Each individually screened pair has a 24AWG stranded tinned copper drain wire. These cables are suitable for RS-422 applications, used as computer cables.

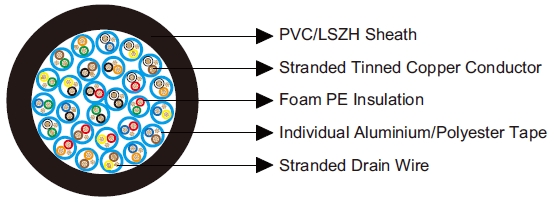

Construction

Conductor: Tinned copper wire.

Insulation: FoamPE.

Individual Screen: Aluminium/Polyester Tape.

Drain Wire: Tinned copper wire.

Sheath: PVC/LSZH.

Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue, Green & Yellow, Green & Brown, Green & Orange, White & Blue, White & Yellow, White & Brown, White & Orange, Blue & Yellow, Blue & Brown, Blue & Orange, Brown & Yellow, Brown & Orange.

Electrical & Mechanical Characteristics

AWG



24

Conductor Construction



7x0.2

UL Style



2493

Maximum Conductor Resistance

Ω/km

85

Voltage Rating

V

300

Nominal Capacitance Conductor to Conductor

pF/m

41

Nominal Capacitance Conductor to Screen

pF/m

76

Bending Radius



10xOverall Diameter

Operating Temperature

-20~60

Dimensions

Ordering Code

No. of pairs

Insulation Thickness

Sheath Thickness

Overall Diameter





mm

mm

mm

BE9738V

27

0.47

1.22

20.2

BE9738H

27

0.47

1.22

20.2
