Multipair Individually Screened Cables-Belden Equivalent 9774
Application
These cables have individually screened pairs laid up. Each individually screened pair has a 20AWG stranded tinned copper drain wire. These cables are used as computer cables.

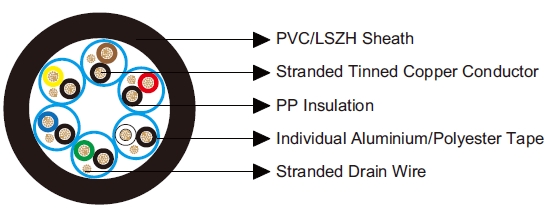

Construction
Conductor: Tinned copper wire.
Insulation: PP.
Individual Screen: Aluminium/Polyester Tape.
Drain Wire: Tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown.
Electrical & Mechanical Characteristics
AWG |
|
18 |
Conductor Construction |
|
19x0.254 |
UL Style |
|
2919 |
Maximum Conductor Resistance |
Ω/km |
21 |
Voltage Rating |
V |
30 |
Nominal Capacitance Conductor to Conductor |
pF/m |
98 |
Nominal Capacitance Conductor to Screen |
pF/m |
180 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-20~80 |
Dimensions
Ordering Code |
No. of pairs |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE9774V |
6 |
0.4 |
1.22 |
14.1 |
BE9774H |
6 |
0.4 |
1.22 |
14.1 |
