Multipair Overall Foil & Braid Screened Cables-Belden Equivalent 9841
Application
These cables have pairs laid up in a foil/braid screen, suitable for RS 485 applications.

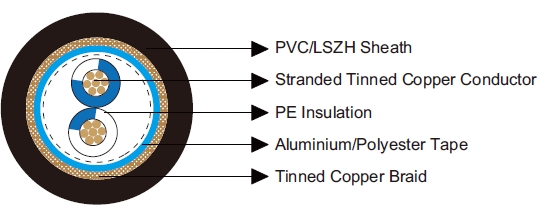

Construction
Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen1: Aluminium/Polyester Tape.
Overall Screen2: Tinned copper braid, 90% coverage.
Sheath: PVC/LSZH.
Insulation Colour: White/Blue & Blue/White.
Electrical & Mechanical Characteristics
AWG |
|
24 |
Conductor Construction |
|
7x0.2 |
UL Style |
|
2919 |
Maximum Conductor Resistance |
Ω/km |
85 |
Voltage Rating |
V |
30 |
Nominal Capacitance Conductor to Conductor |
pF/m |
42 |
Nominal Capacitance Conductor to Screen |
pF/m |
76 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-30~80 |
Dimensions
Ordering Code |
No. of pairs |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE9841V |
1 |
0.6 |
0.81 |
5.9 |
BE9841H |
1 |
0.6 |
0.81 |
5.9 |
