Multipair Overall Foil & Braid Screened Cables-Belden Equivalent 9855
Application
These cables have pairs laid up in a foil/braid screen. These cables are suitable for EIA RS 232 and CAD/CAM applications, used as computer cables.

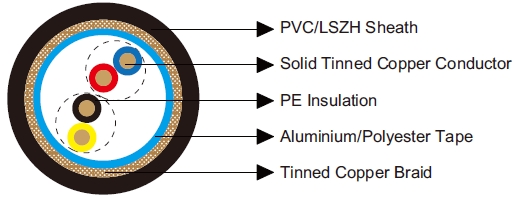

Construction
Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen1: Aluminium/Polyester Tape.
Overall Screen2: Tinned copper braid, 58% coverage.
Sheath: PVC/LSZH.
Insulation Colour: Red & Blue, Black & Yellow.
Electrical & Mechanical Characteristics
AWG |
|
22 |
Conductor Construction |
|
Solid |
UL Style |
|
2582 |
Maximum Conductor Resistance |
Ω/km |
54.8 |
Voltage Rating |
V |
150 |
Nominal Capacitance Conductor to Conductor |
pF/m |
51 |
Nominal Capacitance Conductor to Screen |
pF/m |
90 |
Bending Radius |
|
10xOverall Diameter |
Operating Temperature |
℃ |
-20~60 |
Dimensions
Ordering Code |
No. of pairs |
Insulation Thickness |
Sheath Thickness |
Overall Diameter |
|
|
mm |
mm |
mm |
BE9855V |
2 |
0.4 |
0.813 |
6.9 |
BE9855H |
2 |
0.4 |
0.813 |
6.9 |
