BS 5467 Armoured Power Cables, 1900/3300V
Single-core 1900/3300 V cables with solid aluminum conductor
Application
These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.
Construction
Conductor |
Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228. |
Insulation Colour Code |
XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6) 1 Core : Brown |
|
2 Cores : Brown or Blue |
|
3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green/Yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numerals |

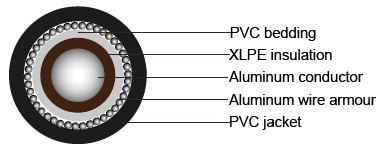

Bedding Armour Outer Sheath |
PVC (Polyvinyl Chloride) Single Core: AWA (Aluminum Wire Armour) Multi Core: SWA (Steel Wire Armour) PVC(Polyvinyl Chloride) |
Technical Information
Voltage rating 1900/3300V
Temperature rating 0°C to +90°C
Bending radius 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1
Nominal Cross-sectional Area |
Nominal Insulation thickness |
Nominal beddingthickness |
Nominal Alum Wire Armor dia. |
Nominal Sheath thickness |
Approx.Overall Diameter |
AprroxWeight |
mm² |
mm |
mm |
mm |
mm |
mm |
kg/km |
1x50 |
2 |
0.8 |
1.25 |
1.6 |
19.4 |
600 |
1x70 |
2 |
0.8 |
1.25 |
1.6 |
20.9 |
710 |
1x95 |
2 |
0.8 |
1.25 |
1.6 |
22.5 |
810 |
1x120 |
2 |
1 |
1.6 |
1.7 |
25.2 |
1065 |
1x150 |
2 |
1 |
1.6 |
1.7 |
26.5 |
1210 |
1x185 |
2 |
1 |
1.6 |
1.8 |
28.3 |
1390 |
1x240 |
2 |
1 |
1.6 |
1.8 |
30.5 |
1630 |
1x300 |
2 |
1 |
1.6 |
1.9 |
32.8 |
1900 |
|
