BS 5467 Armoured Power Cables, 600/1000V
Single-core 600/1000 V cables with solid aluminum conductor
Application
These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.

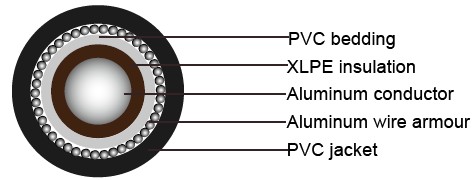

Construction
Conductor | Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228. | |
Insulation | XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6) | |
Colour Code | 1 Core : Brown | |
2 Cores : Brown or Blue | ||
3 Cores : Brown, Black, Grey | ||
4 Cores : Blue, Brown, Black, Grey | ||
5 Cores : Green/Yellow, Blue, Brown, Black, Grey | ||
Above 5 Cores : White Cores with black numbers | ||
Bedding | Single core | extruded layer of polymeric material |
Multicore | a) extruded layer of polymeric materia | |
b) or a taped bedding consist of two or more layers of PVC tape or other synthetic tape, for the cable having conductor area of 16mm² and above | ||
Armour | Single Core : AWA (Aluminum Wire Armour) | |
Multi Core : SWA (Steel Wire Armour) | ||
Outer Sheath | Extruded PVC, type 9 specified in BS7655 |
Technical Information
- Voltage rating: 600/1000V
- Temperature rating: 0°C to +90°C
- Bending radius: 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter - Flame retardant: IEC60332 part 1, BS4066 part 1
CABLE PARAMETER
Nominal Cross-sectional Area | Nominal Insulation thickness | Nominal bedding thickness | Nominal Alum Wire Armor dia. | Armour strip | Nominal Sheath thickness | Approx.Overall Diameter | Aprrox Weight | ||
thickness | width | wire armor | wire armor | strip armor | |||||
mm² | mm | mm | mm | mm | mm | mm | mm | mm | kg/km |
1x50 | 1.0 | 0.8 | 0.9 | 0.6 | 2.4 | 1.5 | 16.3 | 15.7 | 460 |
1x70 | 1.1 | 0.8 | 1.25 | 0.6 | 2.4 | 1.5 | 18.7 | 17.4 | 560 |
1x95 | 1.1 | 0.8 | 1.25 | 0.6 | 2.4 | 1.6 | 20.6 | 19.3 | 690 |
1x120 | 1.2 | 0.8 | 1.25 | 0.6 | 2.4 | 1.6 | 22.1 | 20.8 | 800 |
1x150 | 1.4 | 1 | 1.6 | 0.6 | 2.4 | 1.7 | 25.2 | 23.2 | 970 |
1x185 | 1.6 | 1 | 1.6 | 0.6 | 2.4 | 1.8 | 27.4 | 25.4 | 1150 |
1x240 | 1.7 | 1 | 1.6 | 1 | 3.6 | 1.8 | 29.9 | 28.7 | 1380 |
1x300 | 1.8 | 1 | 1.6 | 1 | 3.6 | 1.9 | 32.4 | 31.2 | 1640 |
